HF Protocol Support
HF 13.56 MHz operation with ISO15693 and ISO18000-3 support.
Back to RFID Tags & Devices

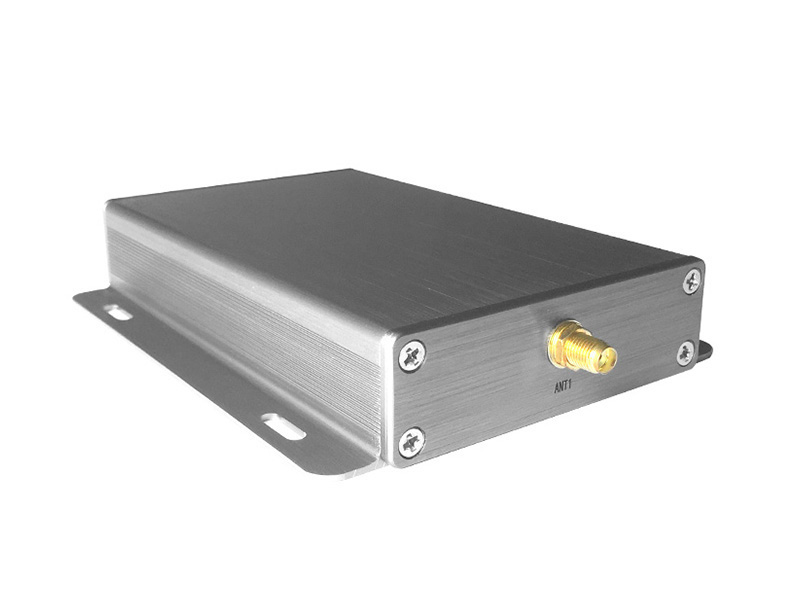

HF Reader
RU6601-RU6608
HF Medium-Power Reader-Writer Series
A multi-channel HF reader-writer series for fast ISO15693 RFID identification and integration.
Key parameters
Product model
RU6601 / RU6602 / RU6604 / RU6608
Product name
HF Medium-Power Reader-Writer Series
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading speed
<= 65 tags per second
Reading distance
Up to 65 cm, depending on tag, antenna size, and environment
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Fast Anti-Collision
Reading speed up to 65 tags per second.
SMA Antenna Options
SMA antenna interface options from 1 to 8 channels.
Configurable RF
Configurable 0.25-1.5 W RF power.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product Parameters
Product model
RU6601 / RU6602 / RU6604 / RU6608
Product name
HF Medium-Power Reader-Writer Series
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading speed
<= 65 tags per second
Reading distance
Up to 65 cm, depending on tag, antenna size, and environment
Antenna interface
RU6601: SMA x1; RU6602: SMA x2; RU6604: SMA x4; RU6608: SMA x8
RF power
0.25-1.5 W configurable
Noise detection
Supported
Communication interface
RS232, USB
Working mode
Host control and scanning, configurable by software
Anti-collision processing
Supported
Interface, Power & Environment
Energy saving
Automatic RF shutdown while idle
Prompt sound
Buzzer, when enabled
Housing material
Aluminum alloy
Waterproof
Not supported
Relay
1 channel
Power input
12 V DC, <= 300 mA
Physical size
141 x 105 x 25 mm
Package size
255 x 205 x 70 mm
Gross weight
Approx. 300 g; RU6608 approx. 350 g
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing

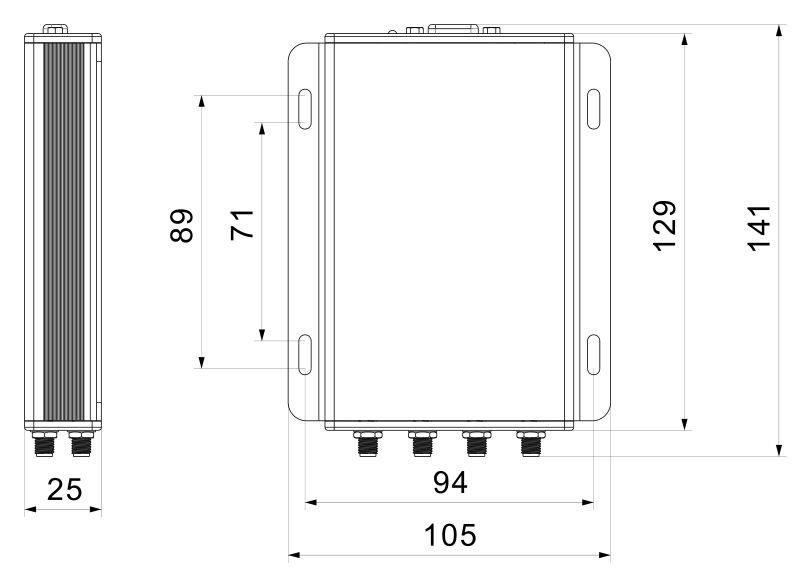

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
