EN_RTX1002_HF_Smart_Bookshelf

Blind-Spot Free High-Performance Reading for Smart Shelves

Specially engineered for dense book inventory (thickness ≥8mm), ensuring 100% stable reading rate performance[cite: 12].

Achieves rapid inventory tracking with scanning speed ≤1.2 seconds per layer for 50 books[cite: 12].

Optimized internal tuning structure fully supports reliable deployment on industrial metal bookshelves[cite: 12].

Seamlessly pairs with REAOX mid/high-power readers for smart cabinets, medical fridges, and canteens[cite: 12].

Antenna Parameters

Working Frequency	13.56 MHz [cite: 12]
Standard Support	ISO 15693 [cite: 12]
RF Power Support	4W or below [cite: 12]
Connectors	MCX Interface [cite: 12]
Communication	TCP/IP [cite: 12]
Tag Requirements	Overlap area ≤ 50% for optimal performance [cite: 12]

Physical & Environmental

Dimensions (LxWxH)	210 x 16 x 255 mm [cite: 12]
Material	Premium ABS Engineering Plastic [cite: 12]
Metal Support	Yes [cite: 12]
Applications	Smart Libraries, Chemical Cabinets, Retail Shelves, Canteens [cite: 12]

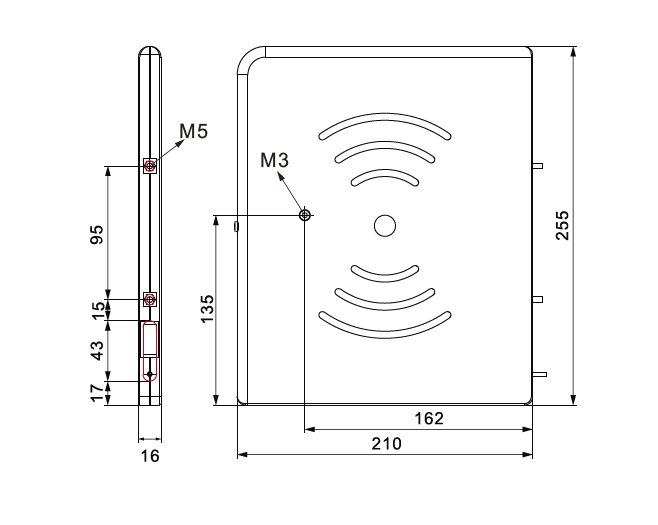

Mechanical Dimensions (mm)

RTX1002
