HF Medium-Power Desktop Reader-Writer
HF 13.56 MHz operation with ISO15693 and ISO18000-3 support.
Wide 468.5 x 365 mm working surface for desktop processing.
Anti-metal design supports stable reading performance.
Supports host-control and scanning modes configurable by software.
RU6105 Series
| Product model | RU6105 |
|---|---|
| Product name | HF Medium-Power Desktop Reader-Writer |
| Working frequency | 13.56 MHz |
| Supported standards | ISO15693 and ISO18000-3 |
| Reading speed | <= 50 tags per second |
| Reading distance | Up to 48 cm |
| Working mode | Host control and scanning, configurable by software |
| Adjacent read range | <= 6 cm |
| Energy saving | Automatic RF shutdown while idle |
| Anti-metal design | Yes |
| Prompt sound | Buzzer, when enabled |
| RF power | 0.25-1.5 W configurable |
| Housing material | Tempered-glass panel, aluminum alloy |
|---|---|
| Noise detection | Supported |
| Waterproof | Not supported |
| Communication interface | RS232, USB |
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Maximum power consumption | 3.5 W |
| Power input | 12 V DC |
| Relative humidity | 10%-95% RH, non-condensing |
| Anti-collision processing | Supported |
| Physical size | 468.5 x 365 x 25 mm |
| Package size | 585 x 450 x 85 mm |
| Gross weight | Approx. 3950 g |

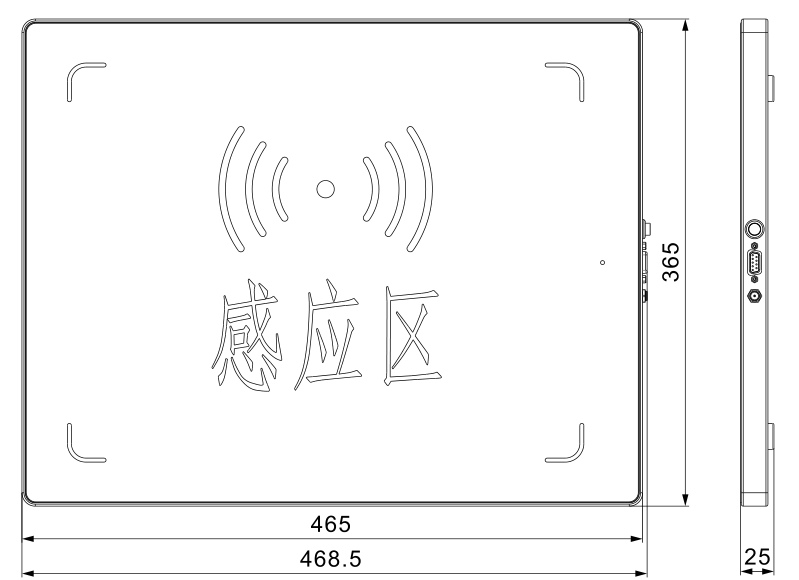

RU6105 Structure Size
