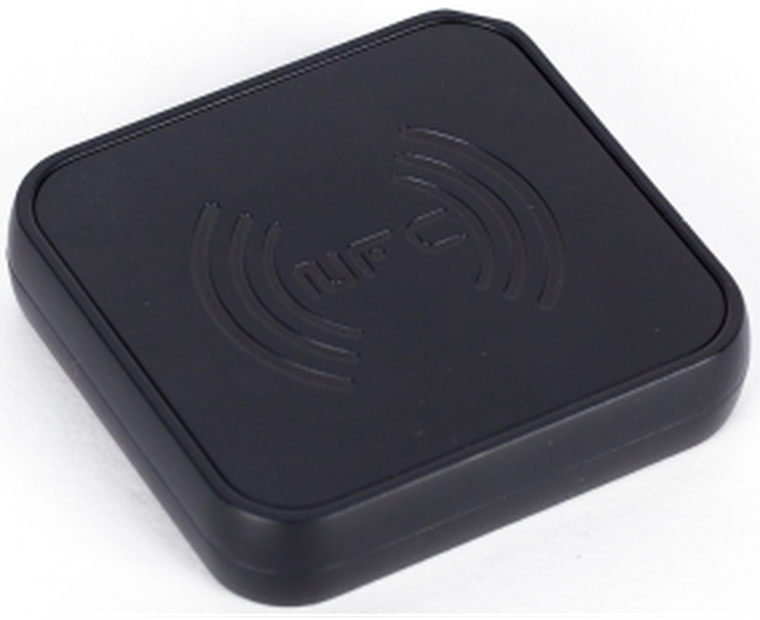

HF Micro-Power Desktop Reader-Writer
HF 13.56 MHz operation with ISO15693, ISO18000-3M3, and ISO14443A support.
Ultra-compact 49 x 46.1 mm housing for small workspaces.
USB-powered operation with low 0.48 W maximum power consumption.
Supports anti-collision processing and multi-card reading.
RU6203 Series
| Product model | RU6203 |
|---|---|
| Product name | HF Micro-Power Desktop Reader-Writer |
| Working frequency | 13.56 MHz |
| Supported standards | ISO15693, ISO18000-3M3, ISO14443A |
| Reading speed | <= 50 tags per second |
| Reading distance | 8 cm (ISO15693); 5 cm (ISO14443A) |
| Anti-collision processing | Supported |
| Multi-card reading | Supported |
| Supported cards | I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2, Mifare S50/70 |
| Prompt sound | Buzzer, when enabled |
| Communication interface | USB |
| Housing material | ABS plastic |
| Waterproof | Not supported |
|---|---|
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Maximum power consumption | 0.48 W |
| Power input | 5 V, USB powered |
| Relative humidity | 10%-95% RH, non-condensing |
| Physical size | 49 x 46.1 x 10.5 mm |
| Package size | 425 x 303 x 60 mm |
| Gross weight | Approx. 50 g |
RU6203 Product Detail
