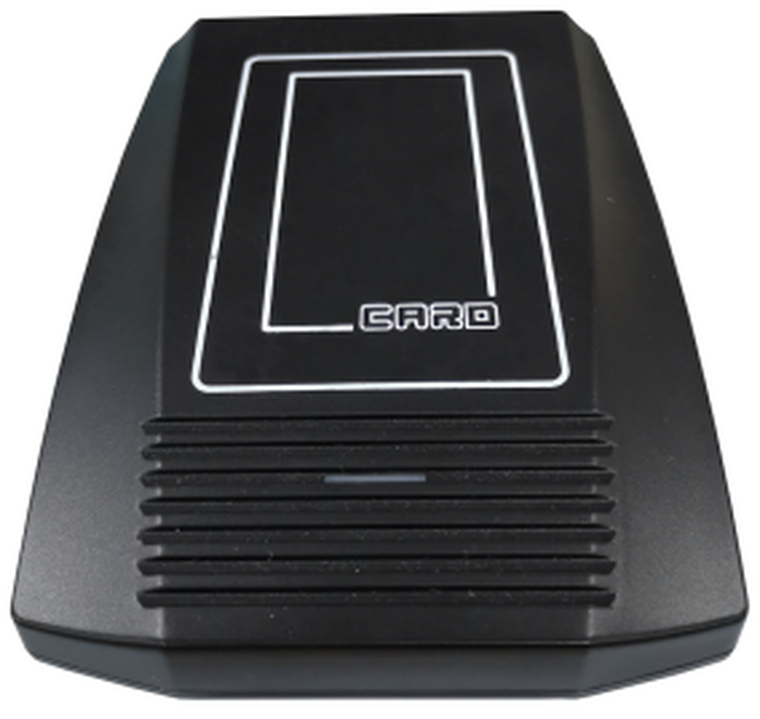

UHF Card Issuing Reader-Writer
UHF 840-960 MHz operation with ISO 18000-6C / EPC Gen2 support.
Reading and writing distance from 0 to 60 cm.
High-speed reading at more than 400 reads per second.
USB communication with 5 V power input.
RU6501 Series
| Product model | RU6501 |
|---|---|
| Product name | UHF Card Issuing Reader-Writer |
| Working frequency | 840-960 MHz |
| Supported standards | ISO 18000-6C / EPC Gen2 |
| Reading speed | > 400 reads per second |
| Reading / writing distance | 0-60 cm |
| Working mode | Host control and active scanning |
| Anti-metal design | No |
| Prompt sound | Buzzer, when enabled |
| RF power | 0-26 dBm adjustable |
| Housing material | ABS |
| Noise detection | Supported |
| Waterproof | Not supported |
|---|---|
| Communication interface | USB |
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Maximum power consumption | 3.5 W |
| Power input | 5 V |
| Relative humidity | 10%-95% RH, non-condensing |
| Anti-collision processing | Supported |
| Physical size | 102 x 140 x 35.5 mm |
| Package size | 425 x 330 x 80 mm |
| Gross weight | Approx. 300 g |

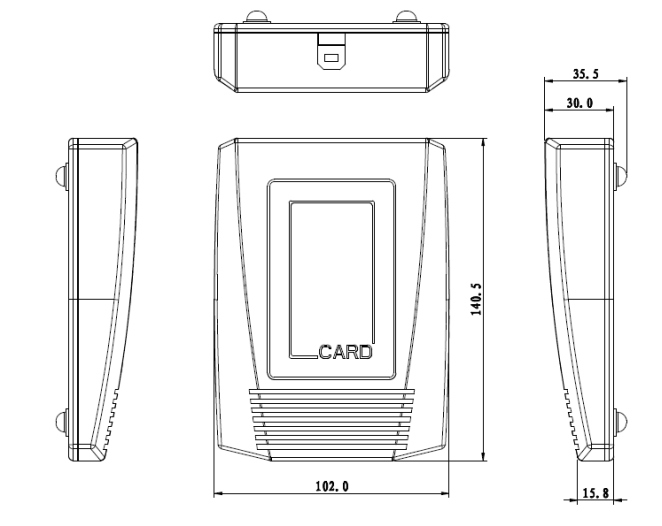

RU6501 Structure Size
