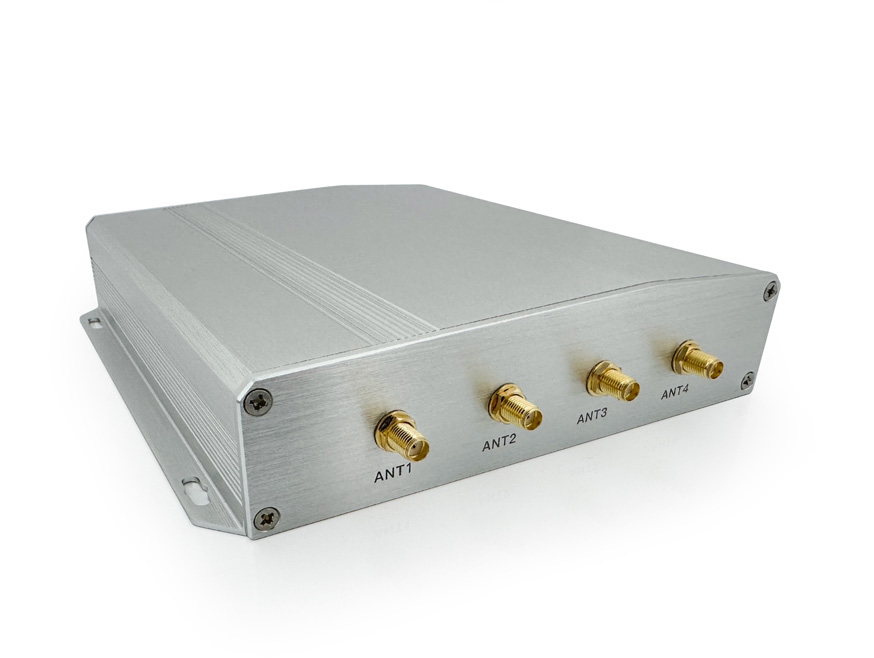

UHF Reader Series
UHF 840-960 MHz operation with ISO 18000-6C / EPC Gen2 support.
Reads more than 400 tags per second.
Processes up to 600 tags within 3 seconds.
SMA antenna interface options for 4 or 8 channels.
RU6504-RU6508 Series
| Product model | RU6504 / RU6508 |
|---|---|
| Product name | UHF Reader Series |
| Working frequency | 840-960 MHz |
| Supported standards | ISO 18000-6C / EPC Gen2 |
| Reading speed | > 400 reads per second |
| Card reading quantity | <= 600 tags / 3 seconds |
| Reading / writing distance | Up to 15 m, depending on tag, antenna size, and environment |
| Antenna interface | RU6504: SMA x4; RU6508: SMA x8 |
| RF power | 33 dBm +/- 1 dB adjustable |
| Communication interface | RS232, USB, Ethernet |
| Working mode | Host control and scanning, configurable by software |
| Anti-collision processing | Supported |
| Energy saving | Automatic RF shutdown while idle |
|---|---|
| Prompt sound | Buzzer, when enabled |
| Housing material | Aluminum alloy |
| Waterproof | Not supported |
| Relay | 1 channel |
| Power input | 12 V DC, <= 300 mA |
| Physical size | 192 x 177 x 40 mm |
| Package size | 300 x 250 x 80 mm |
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Relative humidity | 10%-95% RH, non-condensing |

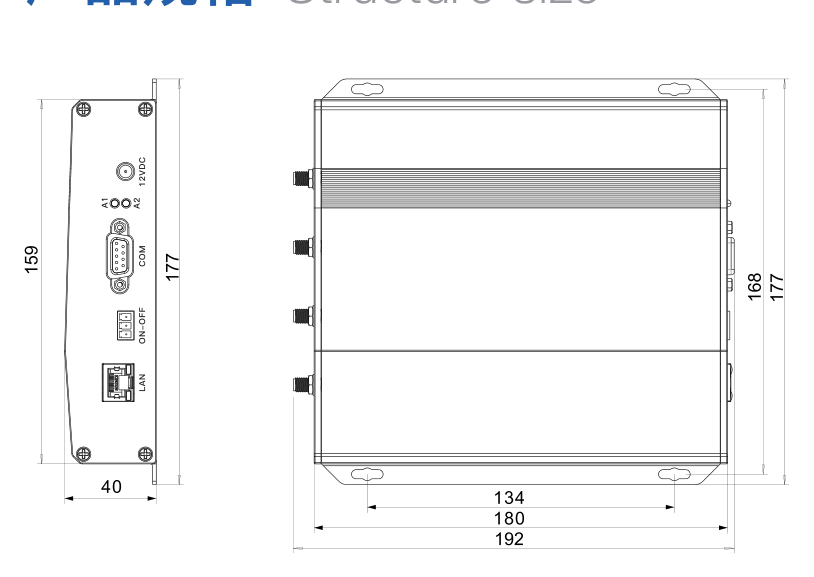

RU6504-RU6508 Structure Size
