HF Medium-Power Reader-Writer Module
HF 13.56 MHz operation with ISO15693 and ISO18000-3 support.
Reading distance up to 65 cm with suitable antenna and environment.
MCX antenna interface for compact embedded integration.
Configurable 0.25-1.5 W RF power.
RU6722 Series
| Product model | RU6722 |
|---|---|
| Product name | HF Medium-Power Reader-Writer Module |
| Working frequency | 13.56 MHz |
| Supported standards | ISO15693 and ISO18000-3 |
| Reading speed | <= 50 tags per second |
| Reading distance | Up to 65 cm |
| Working mode | Host control and scanning, configurable by software |
| Adjacent read range | Not specified |
| Energy saving | Automatic RF shutdown while idle |
| Anti-metal design | Not specified |
| Antenna connector | MCX |
| RF power | 0.25-1.5 W configurable |
| Housing material | PCB and titanium alloy |
|---|---|
| Noise detection | Supported |
| Waterproof | Not supported |
| Communication interface | RS232 |
| Operating temperature | -20 C to 60 C |
| Storage temperature | -40 C to 85 C |
| Maximum power consumption | 3.5 W |
| Power input | 12 V DC, <= 400 mA |
| Relative humidity | 10%-95% RH, non-condensing |
| Anti-collision processing | Supported |
| Physical size | 73 x 45 x 8.5 mm |
| Gross weight | Approx. 31 g |

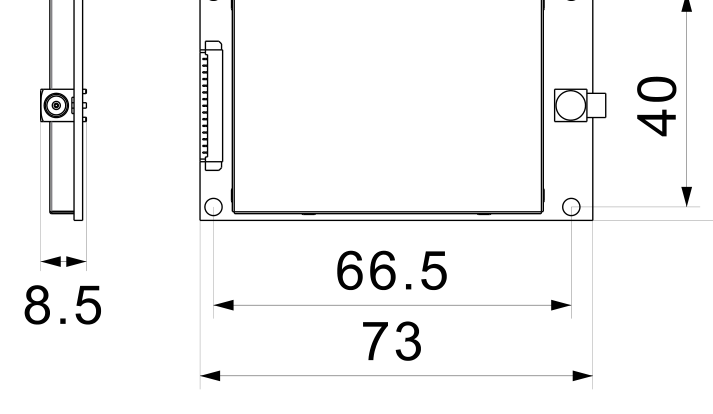

RU6722 Structure Size
