Core Workflow
Purpose-built for smart disinfection cabinet workflows in libraries and archives.
Back to RFID Tags & Devices
Library & Public-Service Equipment

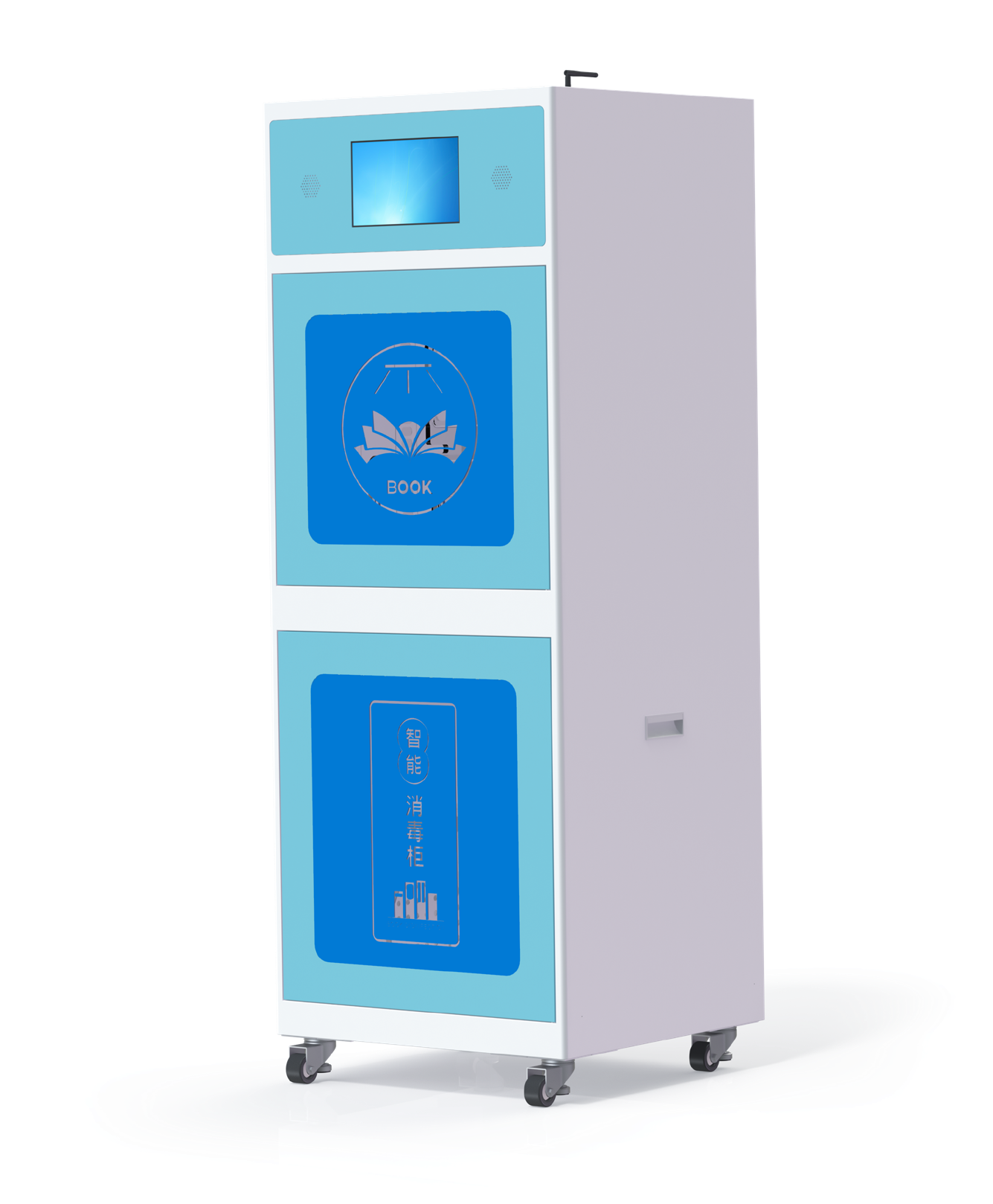

RTS3050
Smart Disinfection Cabinet
Smart Disinfection Cabinet for intelligent library service workflows.
Key parameters
Product model
RTS3050 / RTS3050D
Product name
Smart Disinfection Cabinet
Disinfection mode
First layer: ozone + ultraviolet; second layer: ultraviolet
Sterilization target
Fungi, mold, hepatitis viruses, and microorganisms harmful to archives and books
Door opening
Electronic lock
Airflow system
2 cross-flow fans, 5.3 m3/min airflow
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
RFID Operation
Supports RFID-enabled item identification and efficient service operation.
Service Scenario
Designed for public library, school library, archive, and bookstore scenarios.
Deployment
Structured for stable daily deployment and convenient management.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify whether the buyer needs hardware supply, OEM cooperation, integrator installation, or workflow software.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product Parameters
Product model
RTS3050 / RTS3050D
Product name
Smart Disinfection Cabinet
Disinfection mode
First layer: ozone + ultraviolet; second layer: ultraviolet
Sterilization target
Fungi, mold, hepatitis viruses, and microorganisms harmful to archives and books
Door opening
Electronic lock
Airflow system
2 cross-flow fans, 5.3 m3/min airflow
Book disinfection capacity
<= 50 books per batch
Deployment
Lightweight cabinet, movable deployment
Screen size
10.1 inch
External USB
2
Applicable items
Picture books, books, magazines, newspapers, archives
Emergency device
Mechanical emergency unlocking device
Interface, Disinfection & Structure
Physical size
600 x 580 x 1669.8 mm
Package size
715 x 685 x 1780 mm
Read / write function
Supports multi-tag identification and fast anti-collision processing
Display resolution
RTS3050: 1280 x 800 px @ 60 Hz; RTS3050D: 1024 x 600 px
Touch type
10-point capacitive touchscreen
Supported standards
ISO18000-3, ISO15693
Material structure
>= 1.5 mm sheet metal, tempered glass
Disinfection layers
Two layers: first layer <= 50 books; second layer <= 6 books
HF reader
13.56 MHz; ISO15693 and ISO18000-3; 1.5 W output; >= 50 tags/s; RS232 / RS485 / Ethernet; 12 V DC, <= 1.5 A
Second layer
2 integrated UV / ozone lamps, optional 9 groups; 2 cross-flow fans; 6 books per cycle
First layer
1 integrated UV / ozone lamp group, optional 2 groups; <= 50 books per batch; 50 mg/hr ozone generator
Gross weight
Approx. 80 kg

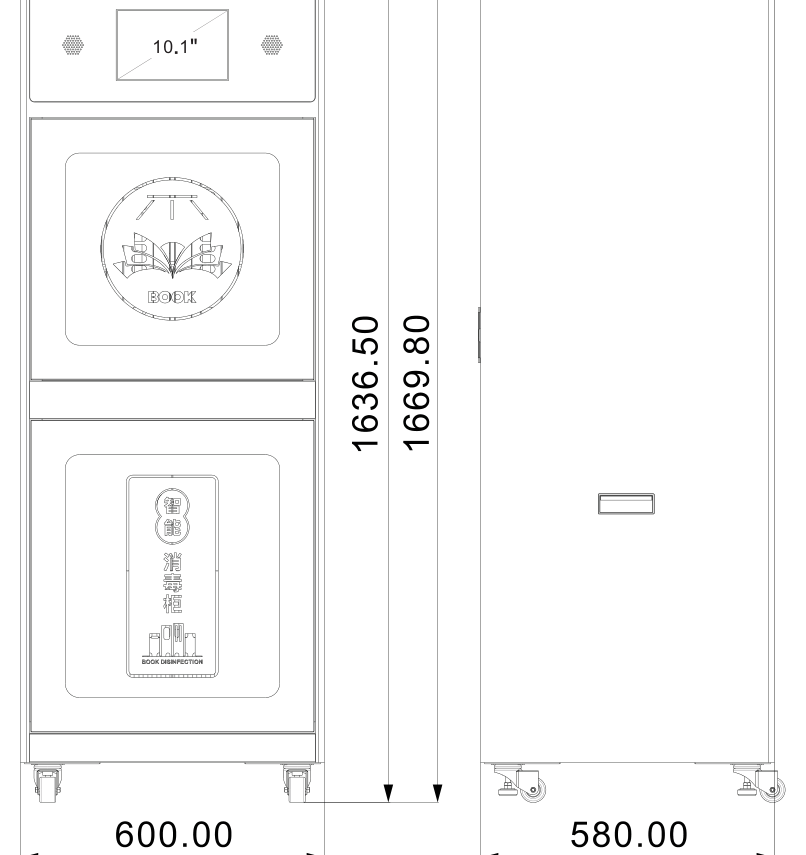

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
