Core Workflow
Purpose-built for smart inventory cart workflows in libraries and archives.
Back to RFID Tags & Devices
Library & Public-Service Equipment

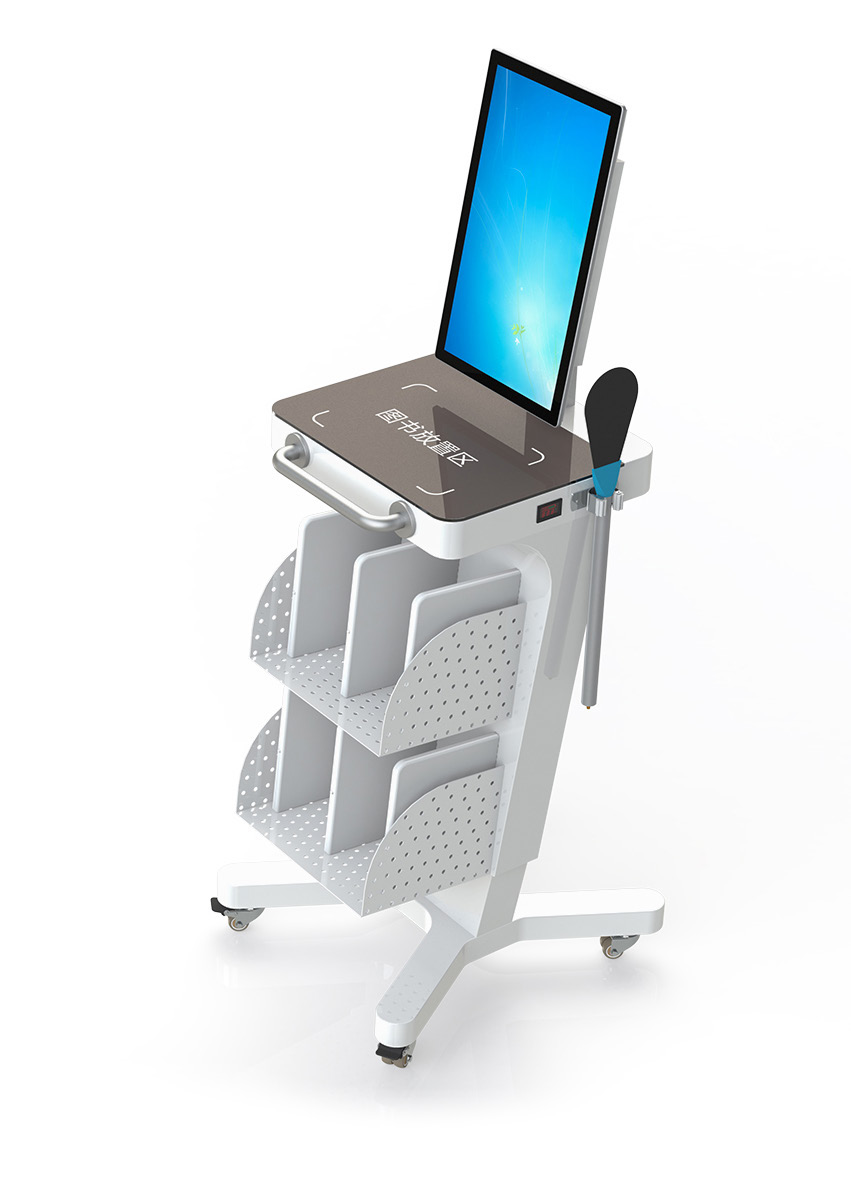

RTS2020
Smart Inventory Cart
Smart Inventory Cart for intelligent library service workflows.
Key parameters
Product model
RTS2020
Product name
Smart Inventory Cart
Working frequency
13.56 MHz, 840-960 MHz
Supported standards
ISO18000-3, ISO15693, ISO 18000-6C
Book identification
Multiple books
Screen rotation
Clockwise / counterclockwise 180 degrees, up / down 100 degrees
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
RFID Operation
Supports RFID-enabled item identification and efficient service operation.
Service Scenario
Designed for public library, school library, archive, and bookstore scenarios.
Deployment
Structured for stable daily deployment and convenient management.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify whether the buyer needs hardware supply, OEM cooperation, integrator installation, or workflow software.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product Parameters
Product model
RTS2020
Product name
Smart Inventory Cart
Working frequency
13.56 MHz, 840-960 MHz
Supported standards
ISO18000-3, ISO15693, ISO 18000-6C
Book identification
Multiple books
Screen rotation
Clockwise / counterclockwise 180 degrees, up / down 100 degrees
Shelf antenna
Optional smart shelf antenna
Shelf layers
2 layers
Screen size
21.5 inch
Battery capacity
12 V 60 Ah with battery-level display
External USB
4
Book capacity
Approx. 60 books
Reader, Power & Structure
Physical size
549 x 610 x 1572 mm (L x W x H)
Package size
610 x 675 x 1720 mm
Read / write function
Supports multi-tag identification and fast anti-collision processing
Display resolution
1080 x 1920 @ 60 Hz (HDMI, up to 4K @ 60 Hz)
Touch type
Multi-point capacitive touchscreen
Material structure
>= 1.5 mm sheet metal, tempered glass
HF reader
13.56 MHz; ISO15693 and ISO18000-3; 1.5 W output; >= 50 tags/s; RS232 / RS485 / Ethernet; 12 V DC, <= 1.5 A
UHF reader
840-960 MHz; ISO 18000-6C; 0-33 dBm adjustable; > 400 reads/s
Shelf options
ABS bookend without tag reading or ABS smart shelf antenna with tag reading (HF only)
Battery runtime
6-10 hours
Network
Ethernet, WiFi
Gross weight
Approx. 57 kg

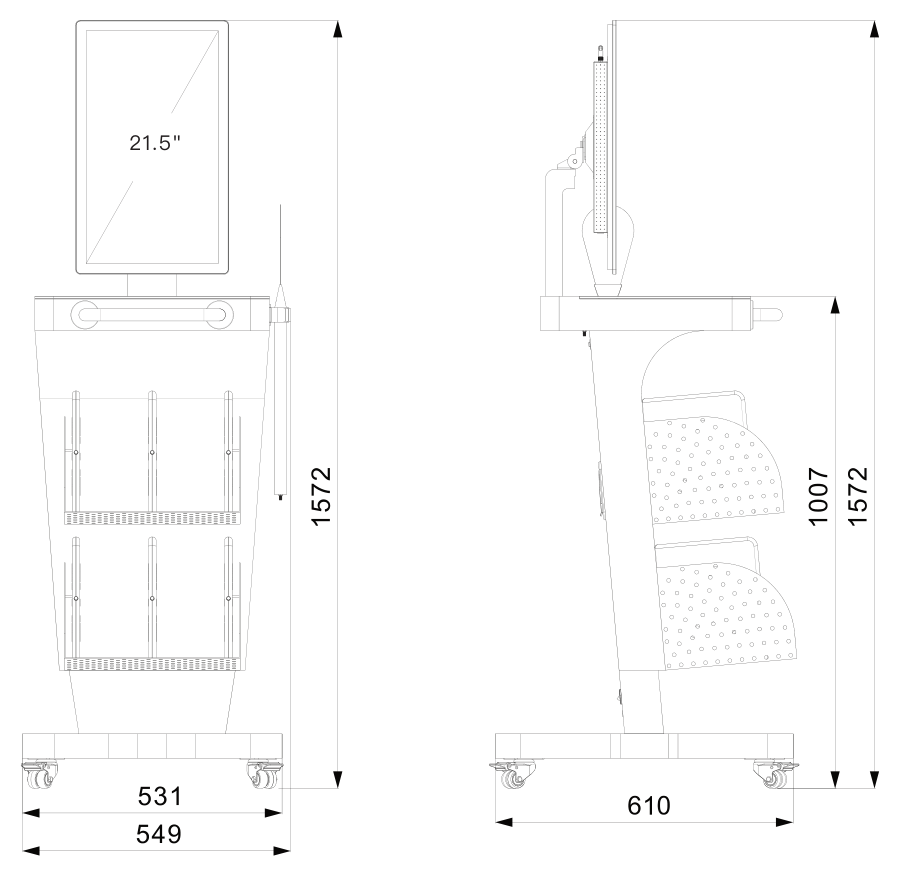

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
