RFID Antenna

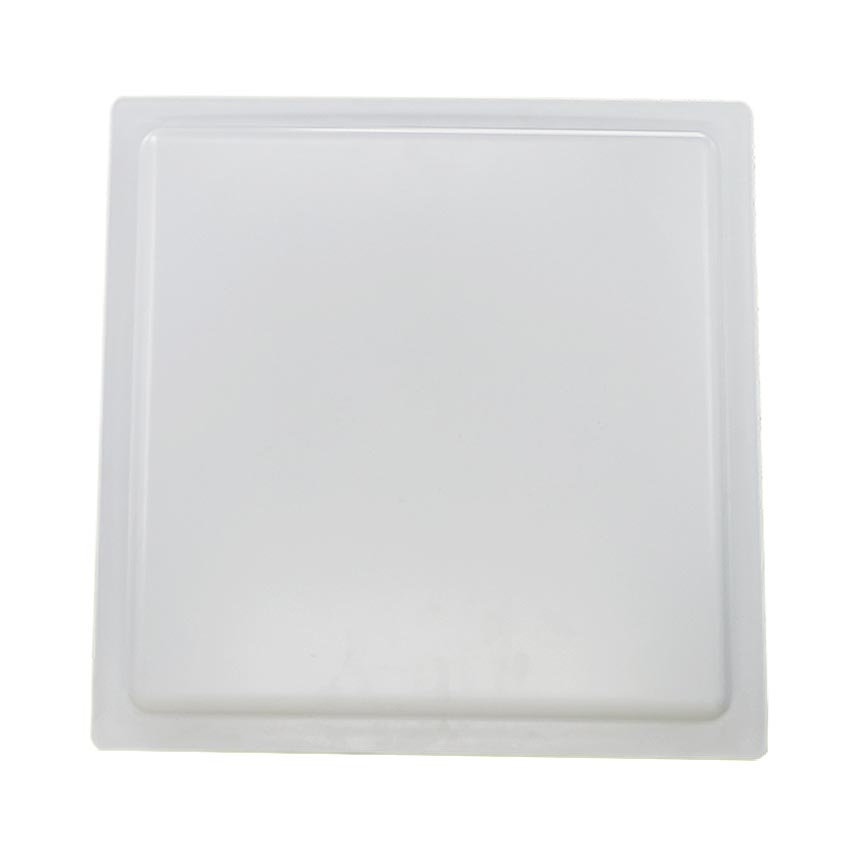

RTX1012 UHF Circularly Polarized Antenna
RFID Antenna
Reliable UHF antenna performance for RFID identification systems
Key parameters
Product model
RTX1012
Product category
RFID antenna
Frequency range
840 MHz-960 MHz
Polarization
circular polarization
Gain
＞12 dBi
H-plane HPBW
40 degrees
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Stable Radiation
Designed for consistent polarization, gain, and beamwidth performance.
Durable Housing
Built with practical materials and protection for daily installation environments.
Easy Installation
Supports standard mounting methods described in the original specification.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Industrial manufacturing
Production-line traceability, equipment checkpoints, embedded machines, and harsh-site data capture.
View solutionWarehousing & distribution
Receiving, dispatch, reusable containers, cage carts, handheld exception checks, and WMS events.
View solutionMedical / laboratory partners
Sample identity, rack-level reading, custody timestamps, and partner-led validation discussions.
View solutionProject Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the antenna with the reader, tag type, shielding conditions, installation geometry, and required read-zone shape.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Technical Specifications
Product model
RTX1012
Product category
RFID antenna
Frequency range
840 MHz-960 MHz
Polarization
circular polarization
Gain
＞12 dBi
H-plane HPBW
40 degrees
E-plane HPBW
40 degrees
Impedance
50 Ω
VSWR
≤1.3
Connector type
N-Female
Connector position
bottom exit
Dimensions
445 mm x 445 mm x 40 mm
Weight
2200 g(excluding bracket)
Material
engineering plastic ABS + aluminum profile
Housing color
White
Installation
pole mounting (maximum pole diameter 80 mm)
Operating temperature
-20 C to + 55 C
Ingress protection
IP65
