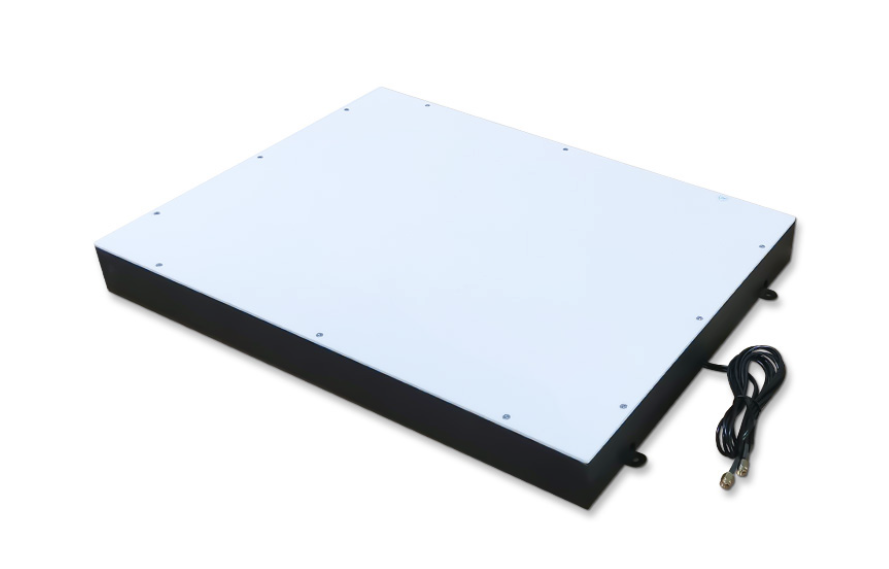

Porcelain White Acrylic
Crafted with premium porcelain white acrylic surface and durable sheet metal for top-tier catering environments.
Back to RFID Tags & Devices
RFID Antenna
RTX1079
HF Intelligent Smart Plate Antenna
Large-Scale RFID Plate Settlement for Smart Dining Systems
Key parameters
Working Frequency
13.56 MHz
Standard Support
ISO 18000-3, ISO 15693
Reading Distance
Max 50cm (High Power) / 40cm (Mid Power)
Antenna Impedance
50 Ω
RF Interface
SMA x 2
Cable Length
2.5 meters
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Maximum Power Coverage
Offers extended reading distance up to 50cm with high-power readers (40cm with mid-power modules).
Dual SMA Interface
Equipped with dual SMA interfaces and a 2.5m robust cable for stable multi-antenna configurations.
Global RFID Protocols
Fully compliant with ISO 18000-3 and ISO 15693 standards for seamless system integration.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Industrial manufacturing
Production-line traceability, equipment checkpoints, embedded machines, and harsh-site data capture.
View solutionWarehousing & distribution
Receiving, dispatch, reusable containers, cage carts, handheld exception checks, and WMS events.
View solutionMedical / laboratory partners
Sample identity, rack-level reading, custody timestamps, and partner-led validation discussions.
View solutionProject Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the antenna with the reader, tag type, shielding conditions, installation geometry, and required read-zone shape.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Antenna Parameters
Working Frequency
13.56 MHz
Standard Support
ISO 18000-3, ISO 15693
Reading Distance
Max 50cm (High Power) / 40cm (Mid Power)
Antenna Impedance
50 Ω
RF Interface
SMA x 2
Cable Length
2.5 meters
Physical & Environmental
Dimensions (LxWxH)
525 x 420 x 50 mm
Gross Weight
4800 g
Main Material
Porcelain White Acrylic, Sheet Metal
Operating Temp
-20°C to 60°C
Storage Temp
-40°C to 85°C
Waterproof Grade
No
Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
