RU6901

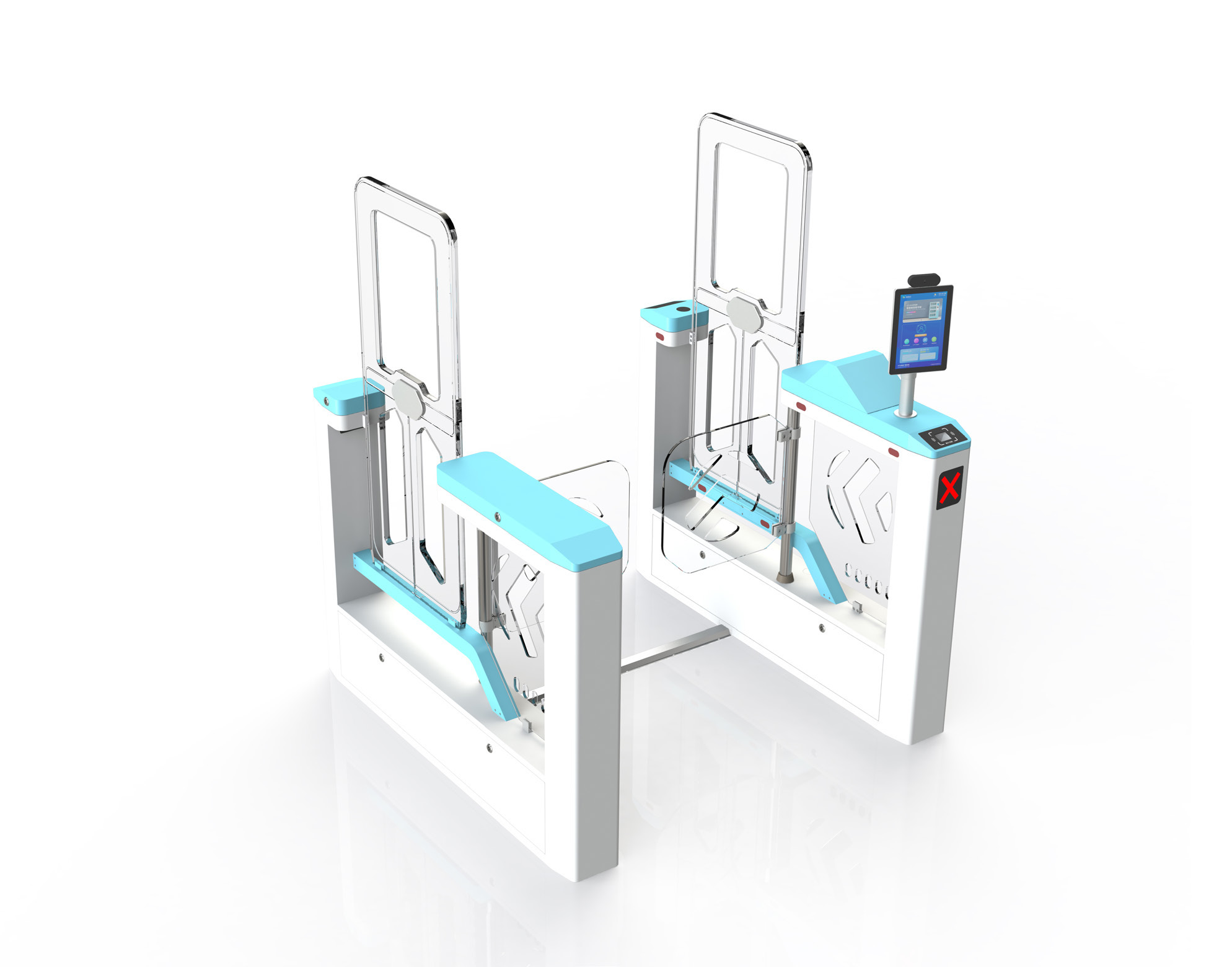

HF RFID Gate Smart Channel
HF RFID Gate Smart Channel for intelligent library service workflows.
Key parameters
Product model
RU6901
Product name
HF RFID Gate Smart Channel
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Channel identification width
70-100 cm, recommended 82 cm
RF power
1-8 W
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
RFID Operation
Supports RFID-enabled item identification and efficient service operation.
Service Scenario
Designed for public library, school library, archive, and bookstore scenarios.
Deployment
Structured for stable daily deployment and convenient management.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify whether the buyer needs hardware supply, OEM cooperation, integrator installation, or workflow software.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
RFID & Channel Parameters
Product model
RU6901
Product name
HF RFID Gate Smart Channel
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Channel identification width
70-100 cm, recommended 82 cm
RF power
1-8 W
Reading radius
>= 60 cm
Reading range
3D sensing
Anti-theft configuration
Client software, shortcut key, mobile phone
Alarm mode
AFI, EAS, DSFID, AFI+EAS, DSFID+EAS
Tag reading speed
>= 65 tags/s
Suitable items
Picture books, books, magazines, newspapers, archives
Structure, Interface & Environment
Physical size
1380 x 184 x 1650 mm
Package size
1482 x 302 x 1812 mm
Display
4.3 inch HD display; dynamic UI, traffic count, alarm information, IP address, temperature and humidity
Alarm light
Seven-color selectable light: red, orange, white, green, cyan, blue, purple
Alarm prompt
Voice or buzzer, selectable
Housing material
Painted sheet metal + transparent acrylic; 304 stainless steel + transparent acrylic
Communication interface
Ethernet, WiFi
Power consumption
<= 150 W
Power input
AC 100-240 V, 50-60 Hz
Operating temperature
-20 C to 60 C
Gross weight
Approx. 65 kg per panel
People counting
Supported with 5 infrared sensing groups
Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
