UHF Protocol Support
UHF 840-960 MHz operation with ISO 18000-6C / EPC Gen2 support.
Back to RFID Tags & Devices

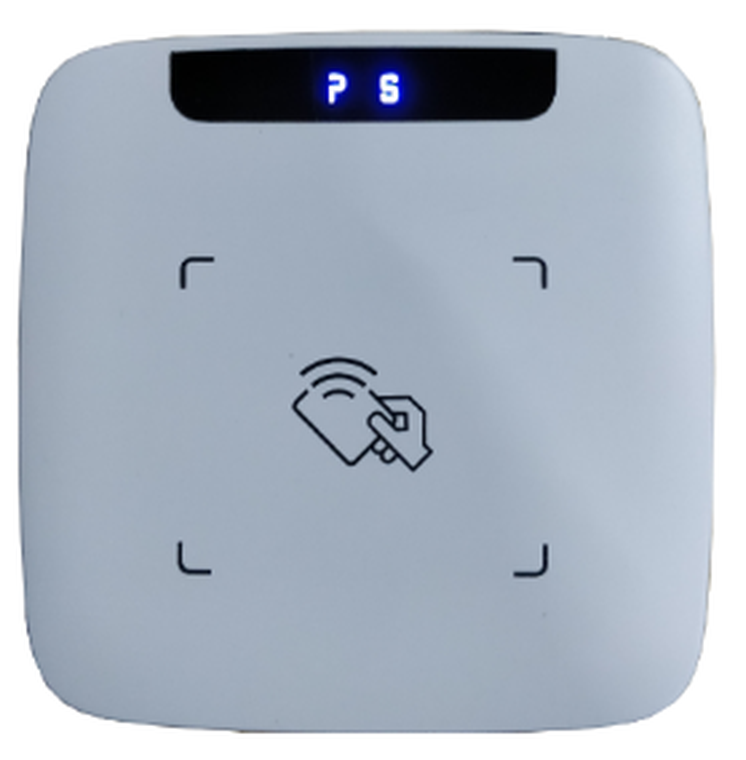

UHF Reader
RU6502
UHF Card Issuing Reader-Writer
A compact UHF desktop reader-writer for EPC Gen2 card issuing and tag operations.
Key parameters
Product model
RU6502
Product name
UHF Card Issuing Reader-Writer
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC Gen2
Reading speed
> 400 reads per second
Reading / writing distance
0-50 cm
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
50 cm Operation
Reading and writing distance from 0 to 50 cm.
High-Speed Reading
High-speed reading at more than 400 reads per second.
USB/RS232 Interface
USB/RS232 communication with 5 V power input.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Industrial manufacturing
Production-line traceability, equipment checkpoints, embedded machines, and harsh-site data capture.
View solutionWarehousing & distribution
Receiving, dispatch, reusable containers, cage carts, handheld exception checks, and WMS events.
View solutionOil & gas assets
Metal assets, inspection workflows, field terminals, fixed read zones, and harsh-environment review.
View solutionMedical / laboratory partners
Sample identity, rack-level reading, custody timestamps, and partner-led validation discussions.
View solutionProject Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product Parameters
Product model
RU6502
Product name
UHF Card Issuing Reader-Writer
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC Gen2
Reading speed
> 400 reads per second
Reading / writing distance
0-50 cm
Working mode
Host control mode
Anti-metal design
No
Prompt sound
Buzzer, when enabled
RF power
0-26 dBm adjustable
Housing material
ABS
Noise detection
Supported
Physical & Environmental
Waterproof
Not supported
Communication interface
USB, RS232
Operating temperature
-10 C to 55 C
Storage temperature
-20 C to 60 C
Maximum power consumption
3.5 W
Power input
5 V
Relative humidity
10%-95% RH, non-condensing
Anti-collision processing
Supported
Physical size
110 x 110 x 17 mm
Package size
425 x 330 x 80 mm
Gross weight
Approx. 108 g
