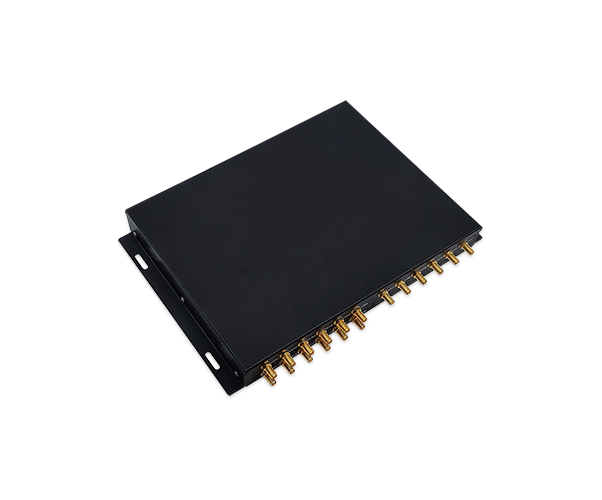

UHF Reader
RU6512-RU6518
UHF Reader Series
A 12- and 18-channel UHF reader series for long-range multi-antenna RFID systems.
Key parameters
Product model
RU6512 / RU6518
Product name
UHF Reader Series
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC Gen2
Reading speed
> 400 reads per second
Card reading quantity
<= 600 tags / 3 seconds
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
High-Speed Reading
Reads more than 400 tags per second.
600-Tag Capacity
Processes up to 600 tags within 3 seconds.
12/18 Channels
SMA antenna interface options for 12 or 18 channels.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Industrial manufacturing
Production-line traceability, equipment checkpoints, embedded machines, and harsh-site data capture.
View solutionWarehousing & distribution
Receiving, dispatch, reusable containers, cage carts, handheld exception checks, and WMS events.
View solutionOil & gas assets
Metal assets, inspection workflows, field terminals, fixed read zones, and harsh-environment review.
View solutionMedical / laboratory partners
Sample identity, rack-level reading, custody timestamps, and partner-led validation discussions.
View solutionProject Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product Parameters
Product model
RU6512 / RU6518
Product name
UHF Reader Series
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC Gen2
Reading speed
> 400 reads per second
Card reading quantity
<= 600 tags / 3 seconds
Reading / writing distance
Up to 20 m, depending on tag, antenna size, and environment
Antenna interface
RU6512: SMA x12; RU6518: SMA x18
RF power
33 dBm +/- 1 dB adjustable
Communication interface
RS232, USB
Working mode
Fixed-frequency and frequency-hopping, configurable by software
Anti-collision processing
Supported
Interface, Power & Environment
Energy saving
Automatic RF shutdown while idle
Prompt sound
Buzzer, when enabled
Housing material
Aluminum alloy
Waterproof
Not supported
Relay
1 channel
Power input
12 V DC, <= 300 mA
Physical size
308 x 229 x 34 mm
Package size
400 x 350 x 80 mm
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing

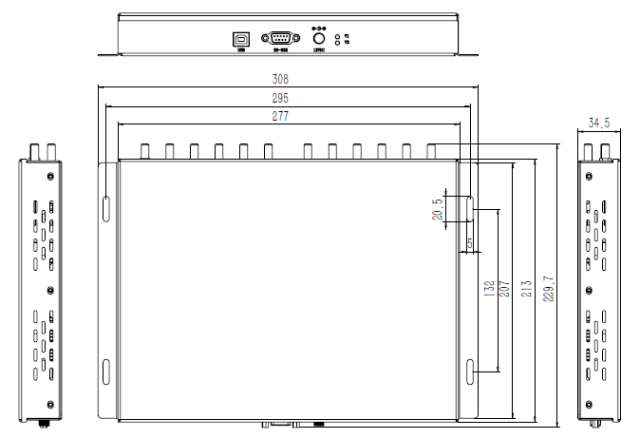

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
