Impinj E710 Inside
Equipped with the world-class E710 chip for top-tier RFID sensitivity and rapid inventory performance.
Back to RFID Tags & Devices

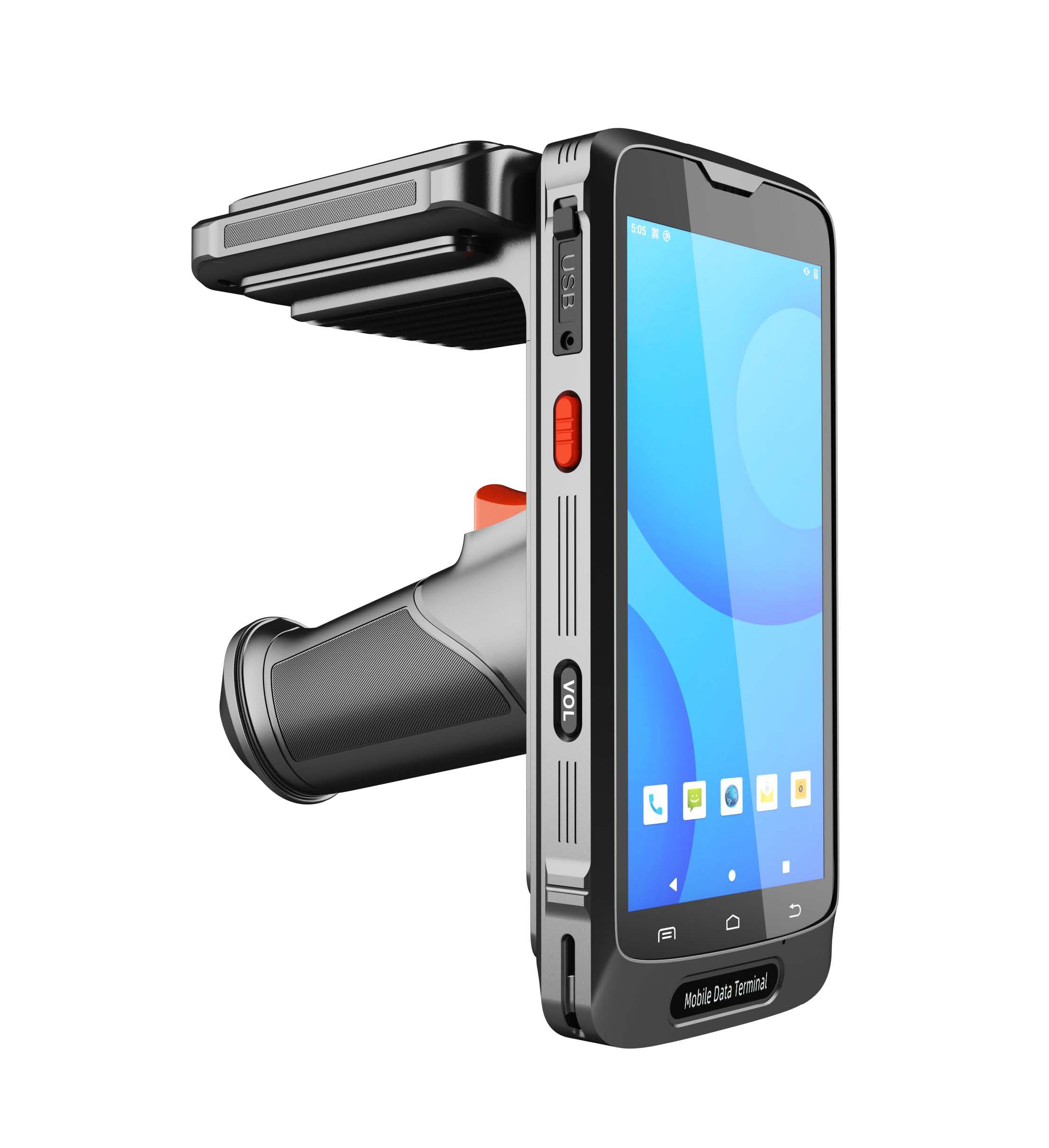

Handheld Terminal
RX3109
Ultra-Long Range UHF RFID Handheld Terminal
Industry-Leading 40m Reading Range & Impinj E710 Power
Key parameters
CPU
High-speed Octa-core CPU (12nm process)
Operating System
Android 10.0
Display
5.5-inch IPS High-brightness full-screen
Scanner
High-precision 1D/2D barcode scanning engine
Engine Chip
Impinj E710 Module
Antenna
New-gen 4-Arm Helical Antenna
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Extreme Read Range
Achieves up to 40 meters indoor and 20 meters outdoor reading range with advanced helical antenna.
700+ Tags/Sec Rate
Industry-leading anti-collision algorithm identifies over 700 tags per second for large-scale warehouse audits.
4-Arm Helical Antenna
Self-developed compact antenna offers high gain and symmetric patterns for precise omnidirectional reading.
Solution Fit
Connect this model to the right operating scene
A product page should not be a dead end. These links help buyers move from a model into the industry workflow where the device is normally evaluated.
Industrial manufacturing
Production-line traceability, equipment checkpoints, embedded machines, and harsh-site data capture.
View solutionWarehousing & distribution
Receiving, dispatch, reusable containers, cage carts, handheld exception checks, and WMS events.
View solutionOil & gas assets
Metal assets, inspection workflows, field terminals, fixed read zones, and harsh-environment review.
View solutionProject Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Pair the reader or terminal with suitable tags, antennas, enclosure, operator workflow, and installation constraints.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Performance Parameters
CPU
High-speed Octa-core CPU (12nm process)
Operating System
Android 10.0
Display
5.5-inch IPS High-brightness full-screen
Scanner
High-precision 1D/2D barcode scanning engine
RFID Performance (UHF)
Engine Chip
Impinj E710 Module
Antenna
New-gen 4-Arm Helical Antenna
Read Range
Indoor: ~40m; Outdoor: ~20m (Environment dependent)
Anti-collision
≥ 700 tags/second
Reliability & Physical
Protection Grade
IP65 Dust and Water proofing
Thermal Management
Aviation-grade aluminum structure for superior RFID cooling
Build Material
High-strength PC + Titanium-magnesium alloy bracket
Related Models
Compare nearby models before shortlisting
Most industrial and public-service buyers evaluate a small family of devices rather than a single model. These related pages come from the same cleaned manual library.
For inquiry
Confirm fit before quoting
Target tags or items
Read distance and environment
Software or middleware connection
Pilot quantity and rollout plan
