Tray Recognition
Supports barcode or QR tray recognition at a recognition distance of approximately 10 cm.
Back to RFID Tags & Devices
Dining & Food-Safety Device
RCY1007
Smart Weighing All-in-One (ARM)
Precise self-service weighing with tray recognition, nutrition data, and quiet account settlement.
Key parameters
Product model
RCY1007
Product name
Smart Weighing All-in-One
Tray recognition
Barcode / QR code
Software
Embedded application software
Recognition time
<= 1 s
MCU
ARM
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Precision Weighing
Starts weighing from 3-5 g with a >=3C high-precision sensor.
Touch Operation
Touch-key operation provides a simple embedded control interface.
7-Inch Display
7-inch screen displays dish, nutrition, user, amount, and balance information.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product & Display
Product model
RCY1007
Product name
Smart Weighing All-in-One
Tray recognition
Barcode / QR code
Software
Embedded application software
Recognition time
<= 1 s
MCU
ARM
Function keys
Touch keys
Screen size
7 inch
Screen resolution
800 x 480
Material
Aluminum alloy, titanium alloy, tempered glass, acrylic
Splash / saliva shield
Standard
Screen functions
Custom logo, dish name, unit price, nutrition, user name, amount, balance
Interface, Power & Environment
Communication interface
RS232
Cascade interface
2 ports
SDK
C / C++ / C# / Java
LED light
Built in
Power input
12 V DC, 3 A
Alarm light
Seven-color alarm in shield; optional upright alarm
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing
Sensor grade
>= 3C
Maximum capacity
50 kg
Cascaded scale support
Supported
RFID tray option
Optional RFID smart tray
Sound-light alarm
Supported; optional voice / buzzer
Power configuration
One adapter per 5 devices
Product size
558 x 437 x 806.5 mm
Gross weight
15 kg

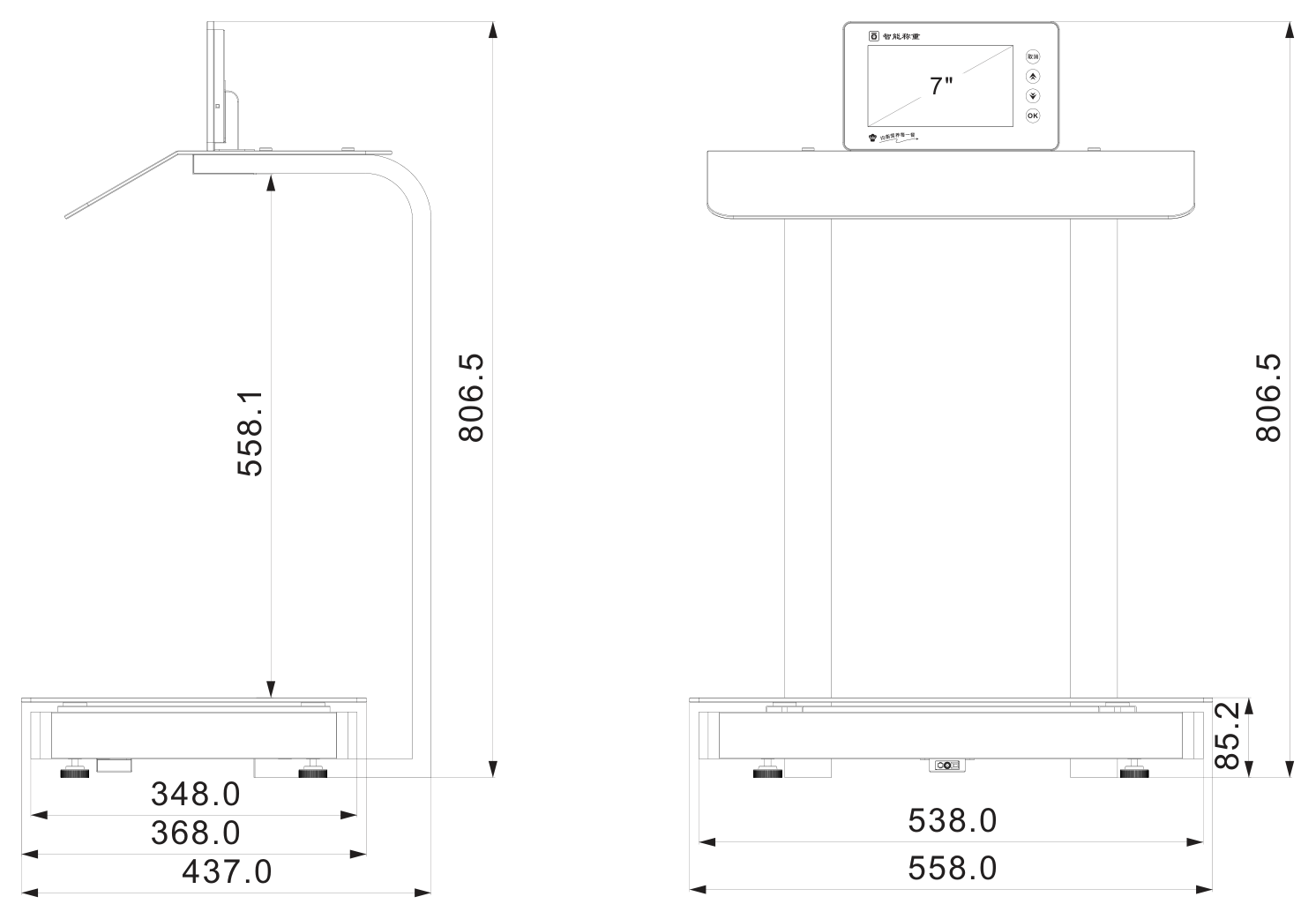

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
