Tray Recognition
Supports tray barcode or QR recognition at a recognition distance of approximately 10 cm.
Back to RFID Tags & Devices
Dining & Food-Safety Device

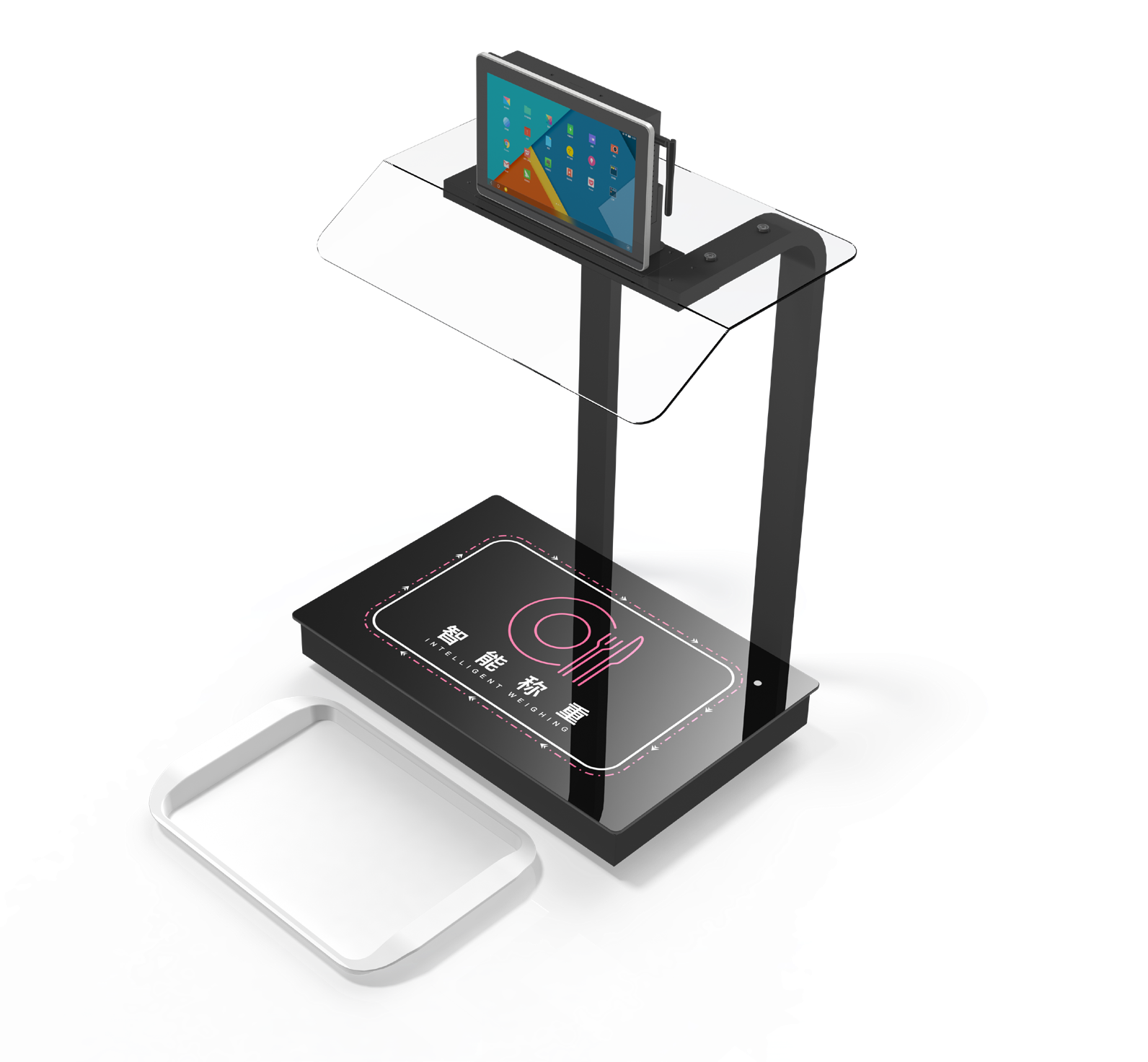

RCY2010
Smart Weighing All-in-One (Android)
Android-based smart weighing for tray recognition, nutrition display, and connected canteen settlement.
Key parameters
Product model
RCY2010
Product name
Smart Weighing All-in-One
Tray recognition
Barcode / QR code
Product size
558 x 437 x 841 mm
Recognition time
<= 1 s
Operating system
Android
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Precision Weighing
Starts weighing from 3-5 g with a >=3C high-precision sensor.
Android Platform
Android platform with Ethernet, WiFi, USB, and RS232 connectivity.
10.1-Inch Display
10.1-inch display supports clear self-service interaction.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product & Display
Product model
RCY2010
Product name
Smart Weighing All-in-One
Tray recognition
Barcode / QR code
Product size
558 x 437 x 841 mm
Recognition time
<= 1 s
Operating system
Android
Screen size
10.1 inch
Screen resolution
1280 x 800
Material
Titanium alloy, tempered glass, acrylic
Splash / saliva shield
Standard
Screen functions
Dish name, unit price, nutrition, user name, amount, balance
CPU
RK3562 quad-core 64-bit, 2.0 GHz
System, Interface & Environment
Network
Ethernet, WiFi
Memory / storage
2 GB + 32 GB
External interfaces
USB x1, RS232 x1
SDK
C / C++ / C# / Java
LED light
Built in
Power input
12 V DC, 3 A
Alarm light
Seven-color alarm in shield; optional upright alarm
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing
Sensor grade
>= 3C
Maximum capacity
50 kg
Glass panel customization
Supported
RFID tray option
Optional RFID smart tray
Sound-light alarm
Supported; optional voice / buzzer
Camera option
Optional 2 MP binocular camera
Gross weight
-

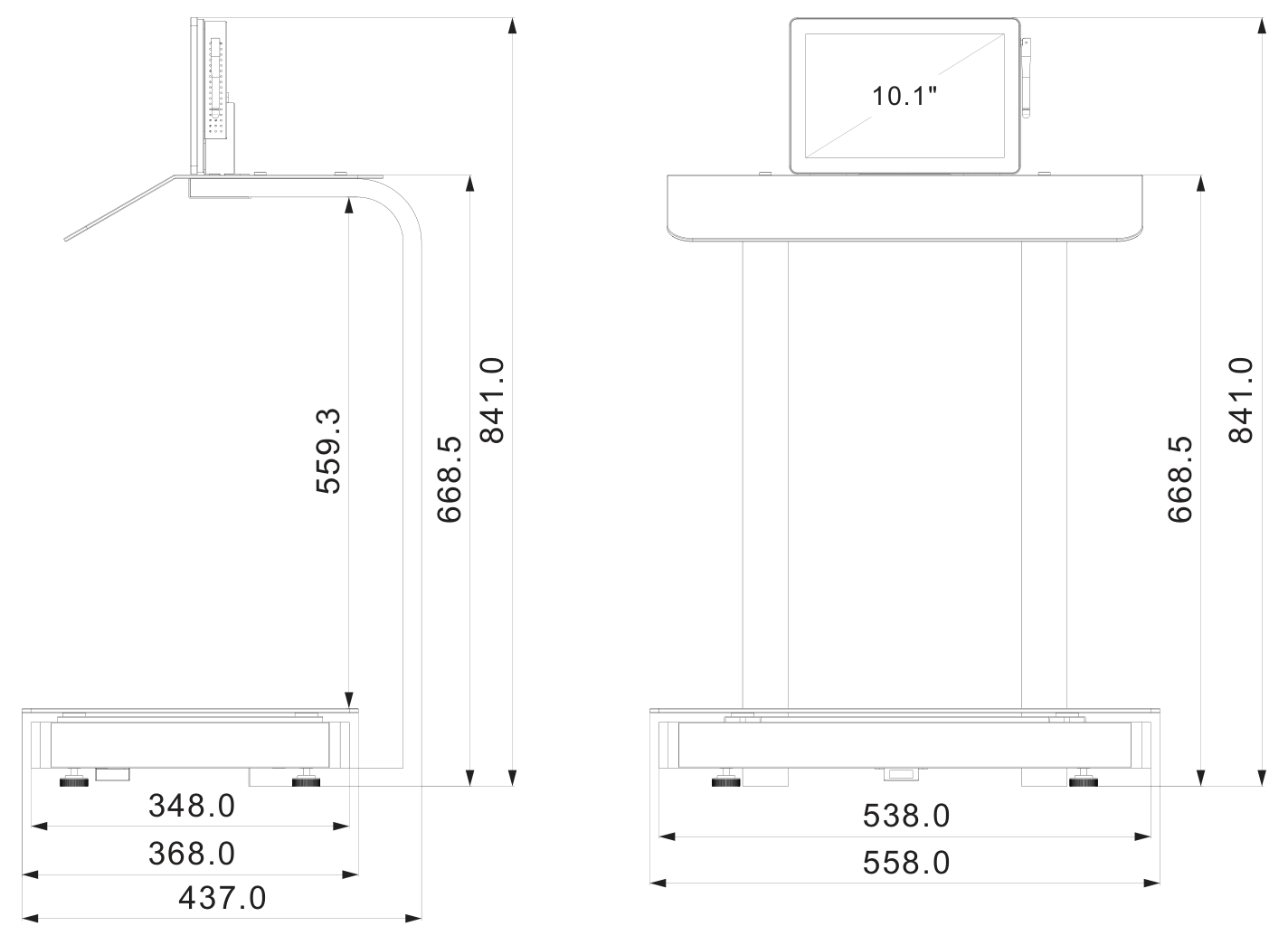

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
