Large Menu Storage
Stores up to 5,000 menu records.
Back to RFID Tags & Devices
Dining & Food-Safety Device
RCY3101
RFID Dish Pricing Terminal
An embedded RFID pricing terminal for fast dish data writing and menu switching.
Key parameters
Product model
RCY3101
Product name
RFID Dish Pricing Terminal
Working frequency
13.56 MHz
Protocol
ISO15693
Product size
161.6 x 105.6 x 28.5 mm
Opening size
158 x 95 mm
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Tableware Recognition
Reads and writes tableware tags in seconds for efficient dish pricing.
Touch-Key Operation
Touch function keys support quick menu switching.
Embedded Installation
RS485 communication supports batch menu import.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product & RFID
Product model
RCY3101
Product name
RFID Dish Pricing Terminal
Working frequency
13.56 MHz
Protocol
ISO15693
Product size
161.6 x 105.6 x 28.5 mm
Opening size
158 x 95 mm
Operating system
Embedded software system
Recognition time
<= 0.5 s
Reading distance
>= 50 mm
Menu storage
5,000 records
Communication
RS485
Touch type
Touch keys
Interface, Power & Physical
Screen size
2.2-inch OLED
SDK
C / C++ / C# / Java
Material
304 stainless steel or sheet metal, acrylic
Power input
12 V DC, 5 A
Menu import
Batch import supported
Linked device
Nutrition price tag
Installation
Embedded
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing
Gross weight
-

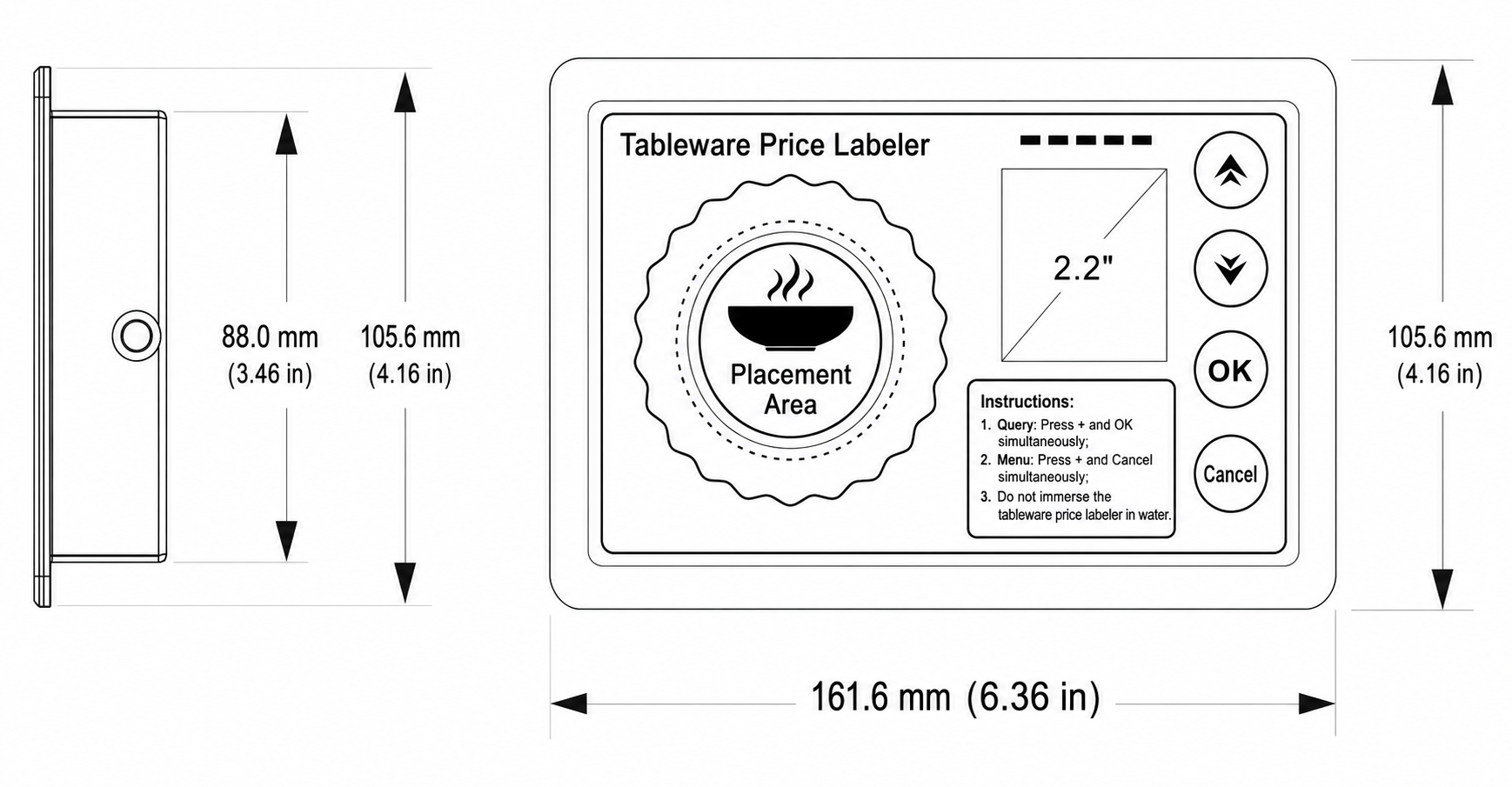

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
