RFID Tray Binding
Supports face, card, and scan-code binding workflows.
Back to RFID Tags & Devices
Dining & Food-Safety Device
RCY2042R

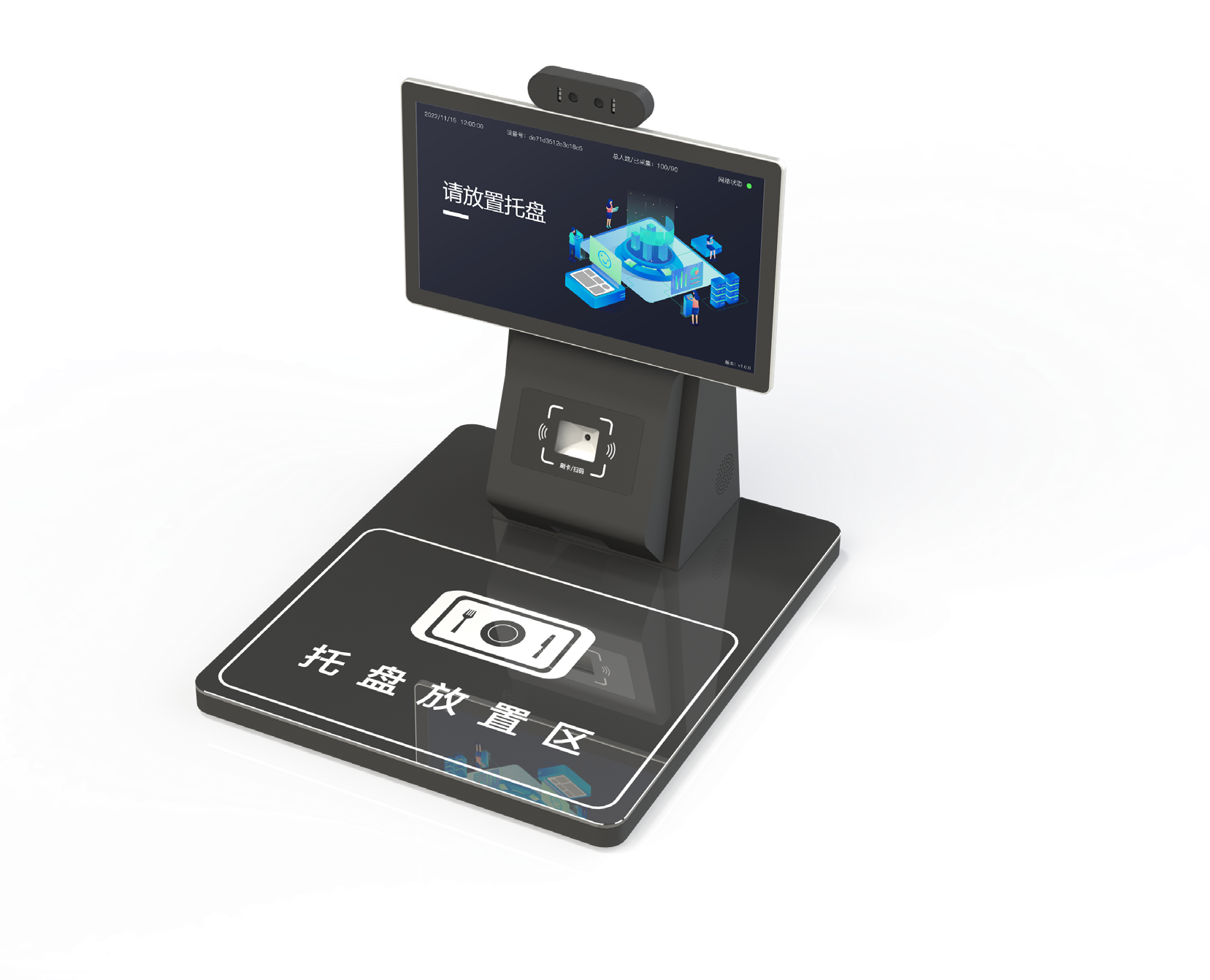

RFID Smart Tray Binding Machine
RFID tray binding with face, card, scan, and smart canteen settlement workflows.
Key parameters
Product model
RCY2042R
Product name
RFID Smart Tray Binding Machine
Tray recognition
RFID smart recognition; optional scan-code recognition
Product size
428 x 518 x 522 mm
Recognition time
<= 0.5 s
Operating system
Android
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Multi-Mode Binding
Built-in RFID reader identifies trays without manual operation.
Face Recognition
15.6-inch touch screen supports clear self-service interaction.
15.6-Inch Display
Binocular wide-dynamic camera supports live face detection.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product & RFID
Product model
RCY2042R
Product name
RFID Smart Tray Binding Machine
Tray recognition
RFID smart recognition; optional scan-code recognition
Product size
428 x 518 x 522 mm
Recognition time
<= 0.5 s
Operating system
Android
Card reader
13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm, USB, 5 V DC
RFID reader
13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm, RS232, 5 V DC
CPU
RK3568 quad-core 64-bit, 2.0 GHz
Memory / storage
2 GB + 16 GB
Screen size
15.6 inch
Screen resolution
1920 x 1080
System, Interface & Environment
Touch
10-point touch
Screen rotation
Up / down 25 degrees
Network
Ethernet, WiFi
External interfaces
USB x2
Scanner
Barcode / QR code supported
Camera
Binocular wide-dynamic camera with live face detection
Material
Aluminum alloy, sheet metal, tempered glass, acrylic
Power input
12 V DC
Sensing area
>= 180 x 180 mm
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing

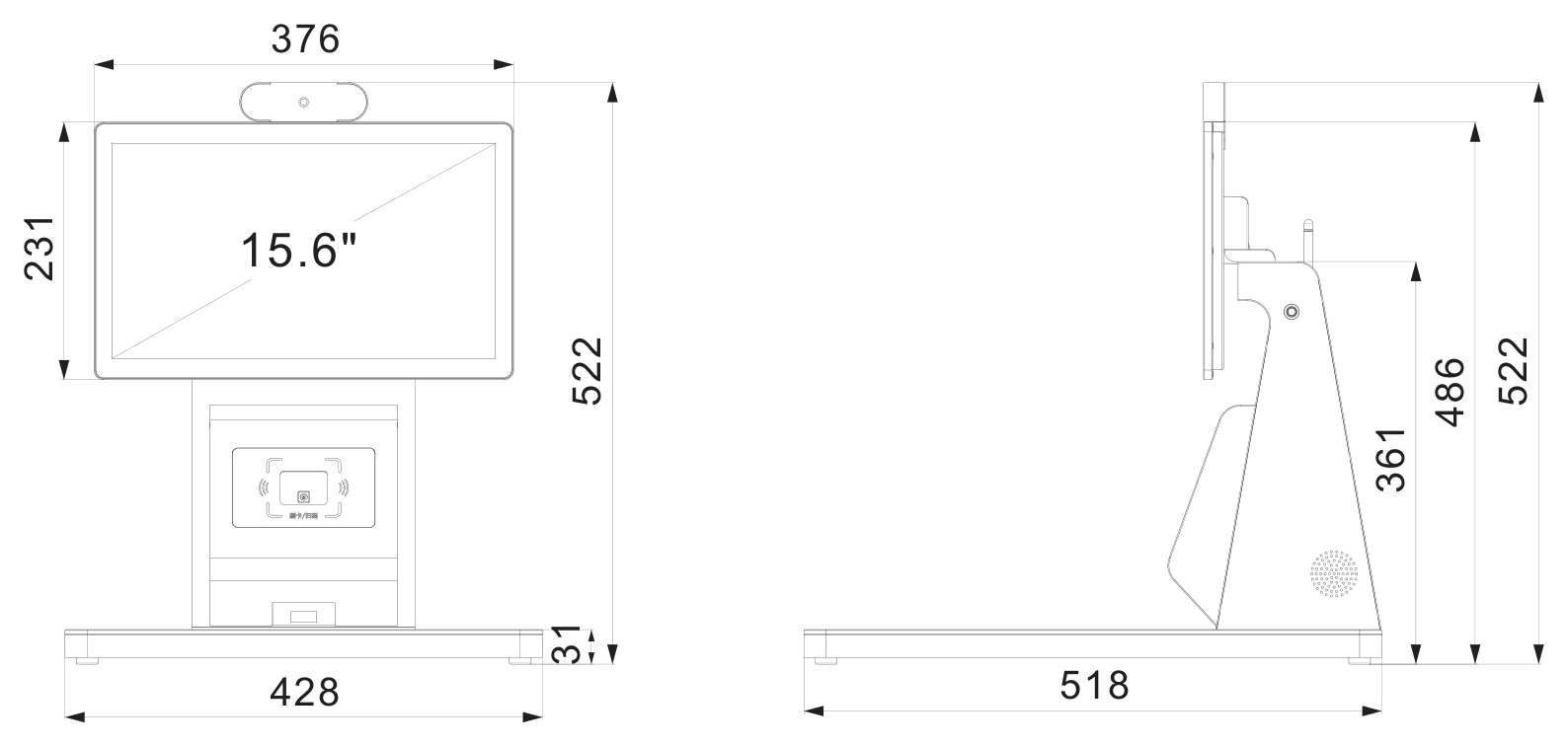

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
