Multi-Mode Payment
Supports face, card, and scan payment workflows.
Back to RFID Tags & Devices

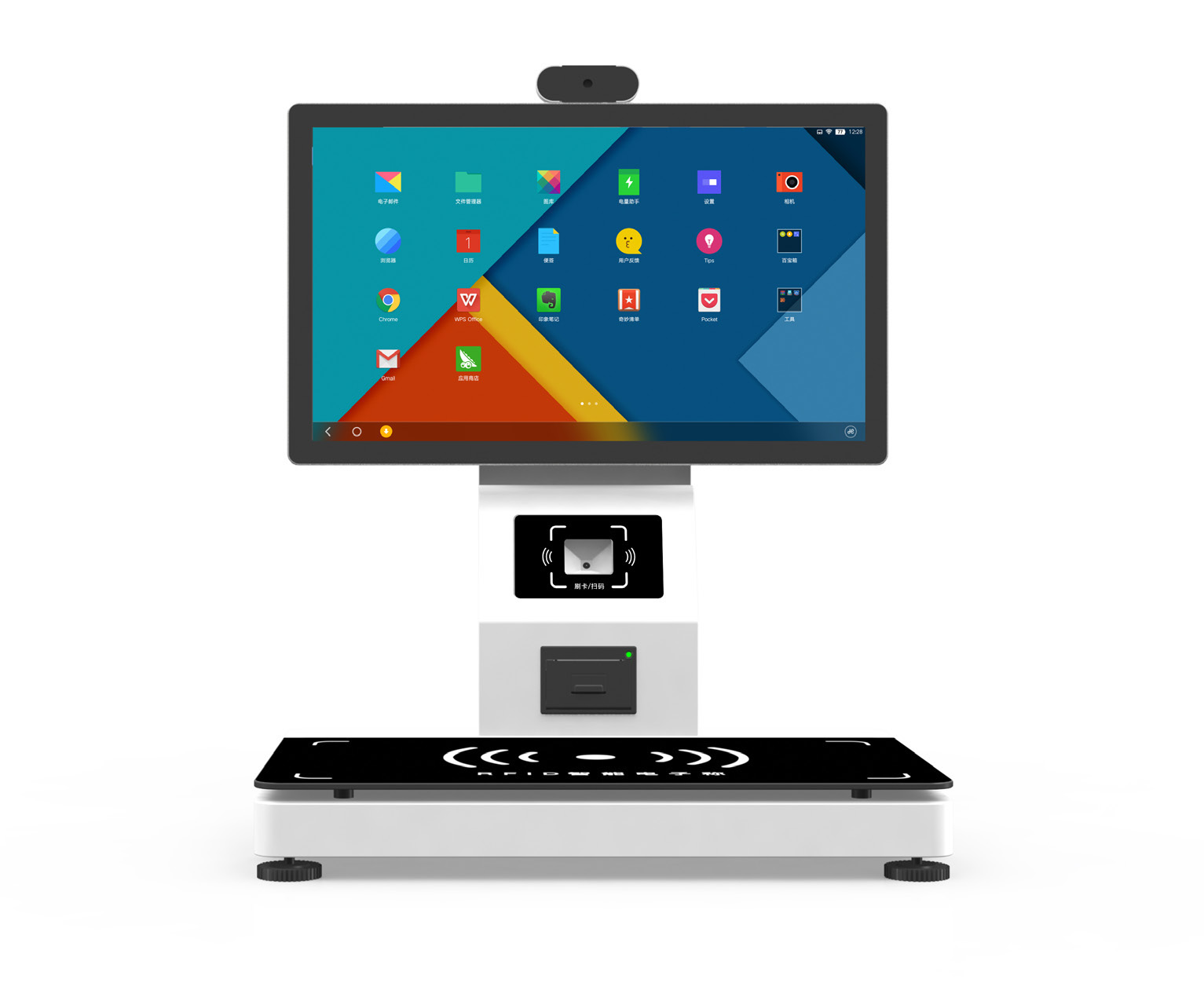

Dining & Food-Safety Device
RCY2030
Smart Weighing Cash Register
A weighing cash register for smart canteens with face, card, scan, RFID, and receipt workflows.
Key parameters
Product model
RCY2030
Product name
Smart Weighing Cash Register
Product size
520 x 368 x 650 mm
Operating system
Android / Windows
Screen size
21.5 inch
Screen resolution
1920 x 1080
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
RFID Recognition
Optional RFID all-in-one configuration supports tableware recognition.
Flexible Settlement
Supports metered and fixed-amount settlement scenarios.
Receipt Printing
Receipt printing supports transaction checkout workflows.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product & Display
Product model
RCY2030
Product name
Smart Weighing Cash Register
Product size
520 x 368 x 650 mm
Operating system
Android / Windows
Screen size
21.5 inch
Screen resolution
1920 x 1080
Touch
10-point touch
Screen rotation
Up / down 70 degrees
Material
Aluminum alloy, titanium alloy, tempered glass, acrylic
Printer
Serial RS232 / TTL or USB; 58 mm thermal paper
Scanner
Barcode / QR code
Card reader
13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm, RS232, 5 V DC
RFID option
Optional built-in RFID antenna
System, Interface & Environment
CPU
RK3562 quad-core 64-bit 2.0 GHz / Intel i5 4th generation
Memory / storage
2 GB + 32 GB / 8 GB + 128 GB
Camera
Monocular camera, D90 degrees, USB power
Scheduled power on/off
Supported
SDK
C / C++ / C# / Java
Power input
12 V DC, 5 A
Communication interface
RS232
Network
Ethernet, WiFi
External interfaces
USB x2
Sensor grade
>= 3C
Maximum capacity
50 kg
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Relative humidity
10%-95% RH, non-condensing
Gross weight
-

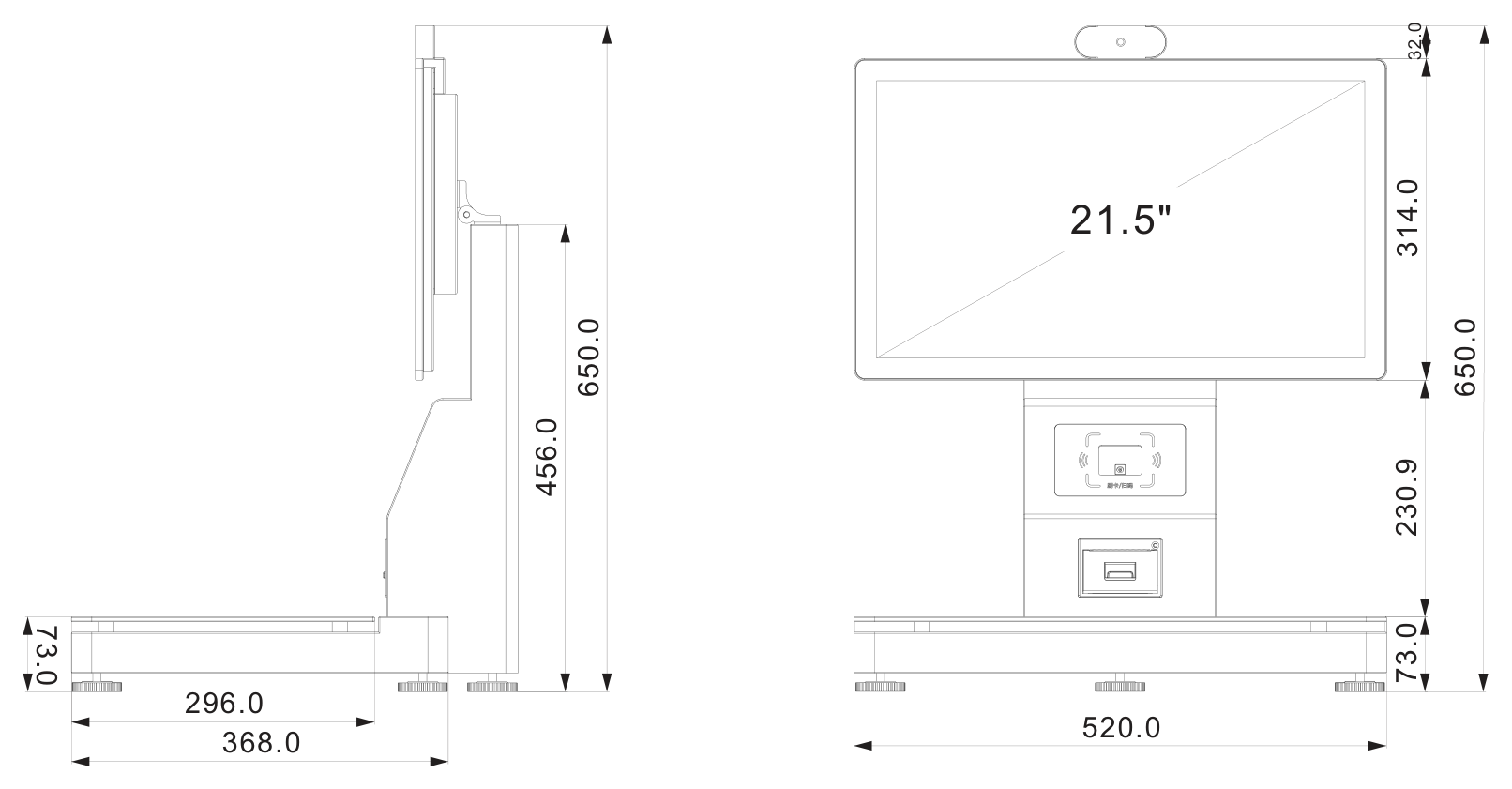

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
