Embedded Checkout
Embedded installation saves desktop space.
Back to RFID Tags & Devices

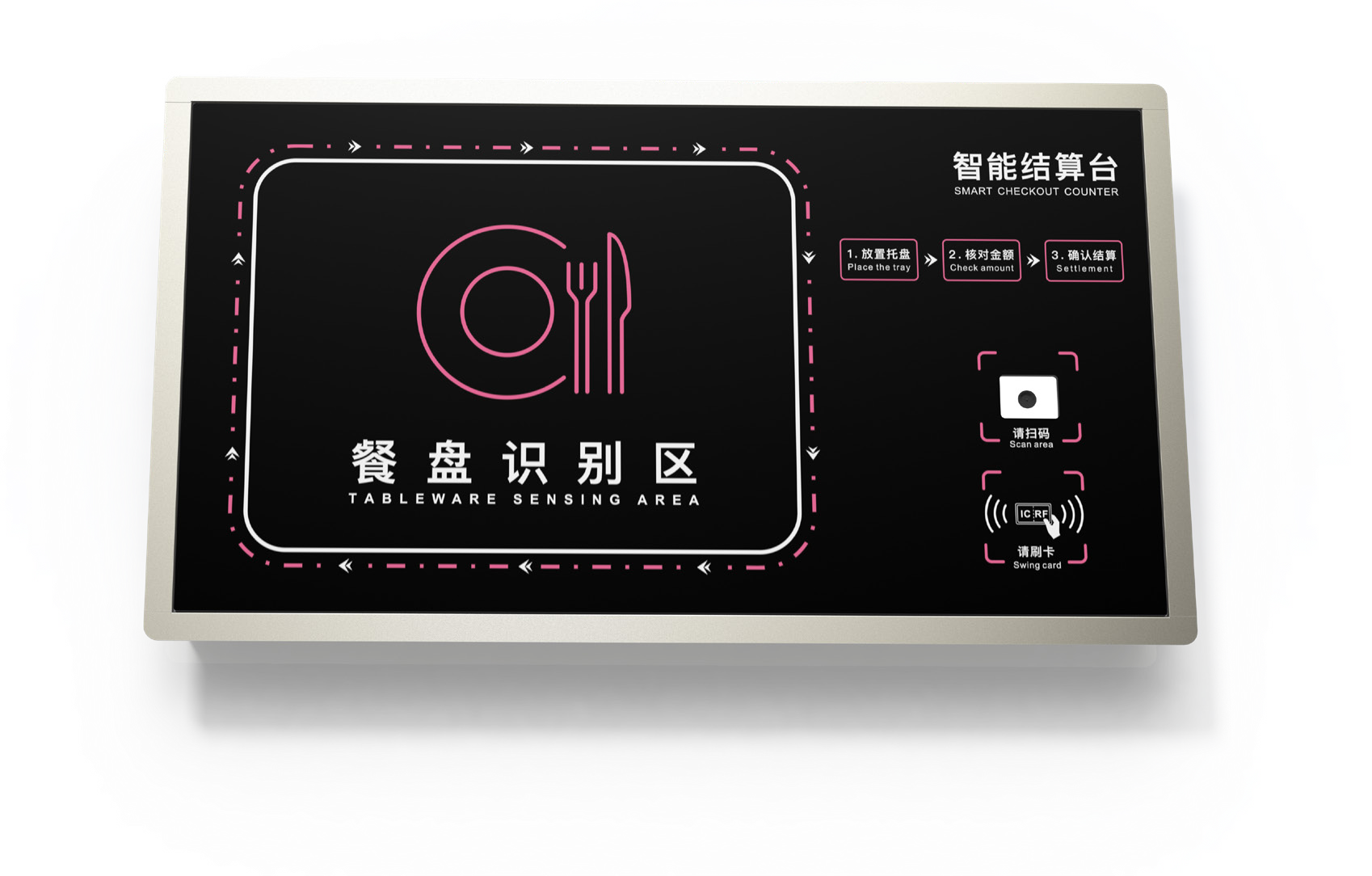

Dining & Food-Safety Device
RCY3404
RFID Embedded Desktop Smart Checkout Counter
An embedded RFID checkout counter for compact self-service smart canteen settlement.
Key parameters
Product model
RCY3404
Product name
RFID Embedded Desktop Smart Checkout Counter
RFID recognition
Fast tableware recognition
Product size
738 x 416 x 53 mm
Opening size
743 x 421 mm
Installation
Embedded
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Anti-Metal RFID
Coupled dual RFID antenna supports anti-metal reading.
Compact Structure
Large sensing area supports fast tableware recognition.
Fast Recognition
Supports USB, RS232, scan, and card-reader integration.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product & Installation
Product model
RCY3404
Product name
RFID Embedded Desktop Smart Checkout Counter
RFID recognition
Fast tableware recognition
Product size
738 x 416 x 53 mm
Opening size
743 x 421 mm
Installation
Embedded
Recognition time
<= 0.5 s
RFID antenna
Coupled dual antenna, anti-metal design
Sensing area
>= 420 x 320 mm
Reading distance
>= 35 cm with white card
Reader protocol
ISO15693 and ISO18000-3
RFID, Interface & Environment
Reading speed
Up to 65 tags per second
Card reader
13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm
Communication interface
USB x2, DB9 RS232 x1
Scanner
High-speed 1D / 2D barcode scanning
ID card option
Optional ID-card payment
Material
304 stainless steel, tempered glass
SDK
C / C++ / C# / Java
Power input
12 V DC
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Gross weight
-

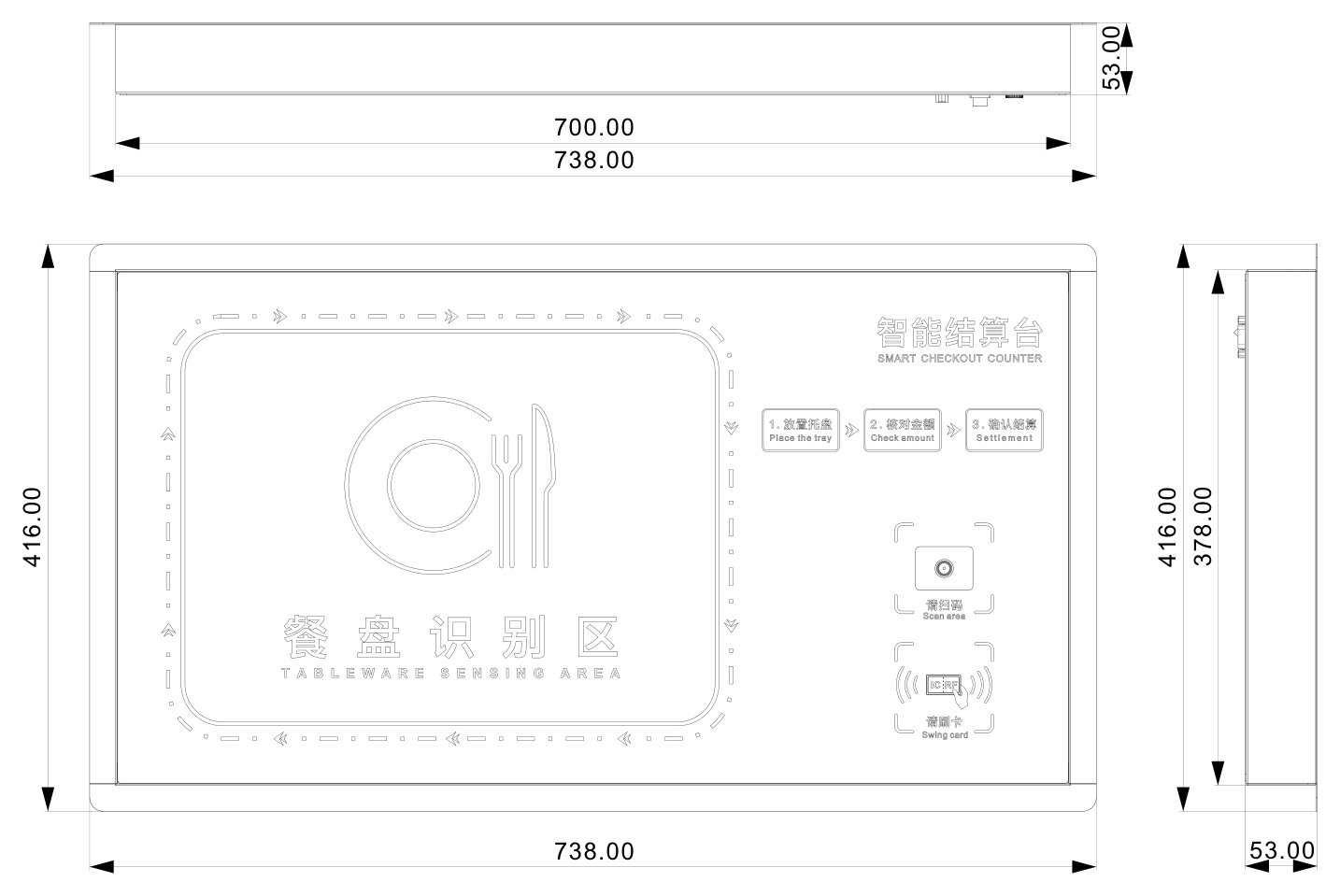

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
