Queue-Ready Layout
Integrated waiting area supports organized checkout flow.
Back to RFID Tags & Devices
Dining & Food-Safety Device
RCY3402

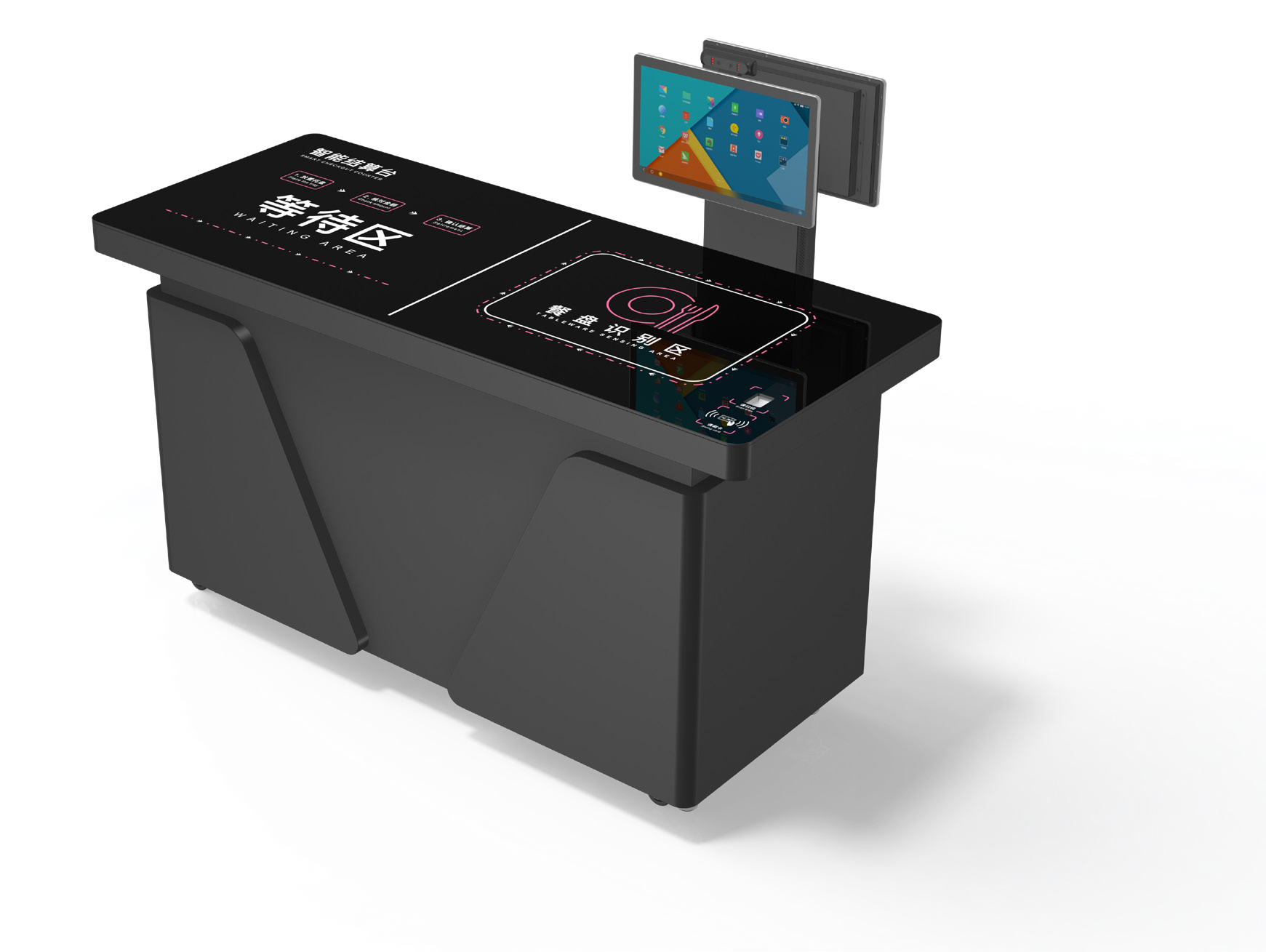

RFID Smart Checkout Counter
A queue-ready RFID smart checkout counter with selectable left or right entry direction.
Key parameters
Product model
RCY3402
Product name
RFID Smart Checkout Counter
RFID recognition
Fast tableware recognition
Product size
1468 x 715.8 x 1200 mm
Package size
1556 x 688 x 971 mm
Recognition time
<= 0.5 s
Selection Context
Start evaluation from workflow, not just the model number
This generated product page is built from the cleaned source manual. Final selection should confirm tags, environment, read-zone geometry, software integration, and installation constraints.
Selectable Entry
Selectable left-entry or right-entry configuration.
RFID Checkout
Dual-antenna RFID recognition supports stable tableware reading.
Dual-Screen Design
Supports face, card, and scan payment workflows.
Project Stack
Do not evaluate this model as a standalone device
Industrial and commercial RFID selection usually depends on the full stack: physical data capture, event cleaning, and the operating software that uses the data.
1
Device & tag layer
Confirm the surrounding tags, readers, antennas, cabinets, terminals, and physical workflow before quoting.
Open layer2Middleware layer
Confirm how RFID reads become clean events for ERP, POS, WMS, MES, LIS, API, or custom business systems.
Open layer3Application layer
Clarify the operating workflow: stocktake, transfer, receiving, dispatch, inspection, custody, search, reporting, or exception handling.
Open layerTechnical Data
Specifications for preliminary selection
These parameters come from the current cleaned product manual and should be confirmed during quotation or project design.
Product & Display
Product model
RCY3402
Product name
RFID Smart Checkout Counter
RFID recognition
Fast tableware recognition
Product size
1468 x 715.8 x 1200 mm
Package size
1556 x 688 x 971 mm
Recognition time
<= 0.5 s
Operating system
Windows / Android
Screen size
15.6 inch
Screen quantity
Dual screen
Resolution
1920 x 1080
CPU
Intel i5 4th generation / RK3568 quad-core 64-bit 2.0 GHz
Memory / storage
8 GB + 128 GB / 2 GB + 16 GB
RFID, Payment & Environment
RFID antenna
Coupled dual antenna, anti-metal design
Sensing area
>= 480 x 360 mm
Reading distance
>= 35 cm with white card
Entry direction
Optional left entry or right entry
Reader protocol
ISO15693 and ISO18000-3
Reading speed
Up to 65 tags per second
Network
Ethernet, WiFi
External interfaces
USB x2
Scanner
High-speed 1D / 2D barcode scanning
Power input
220 V, 60 Hz
Gross weight
76 kg

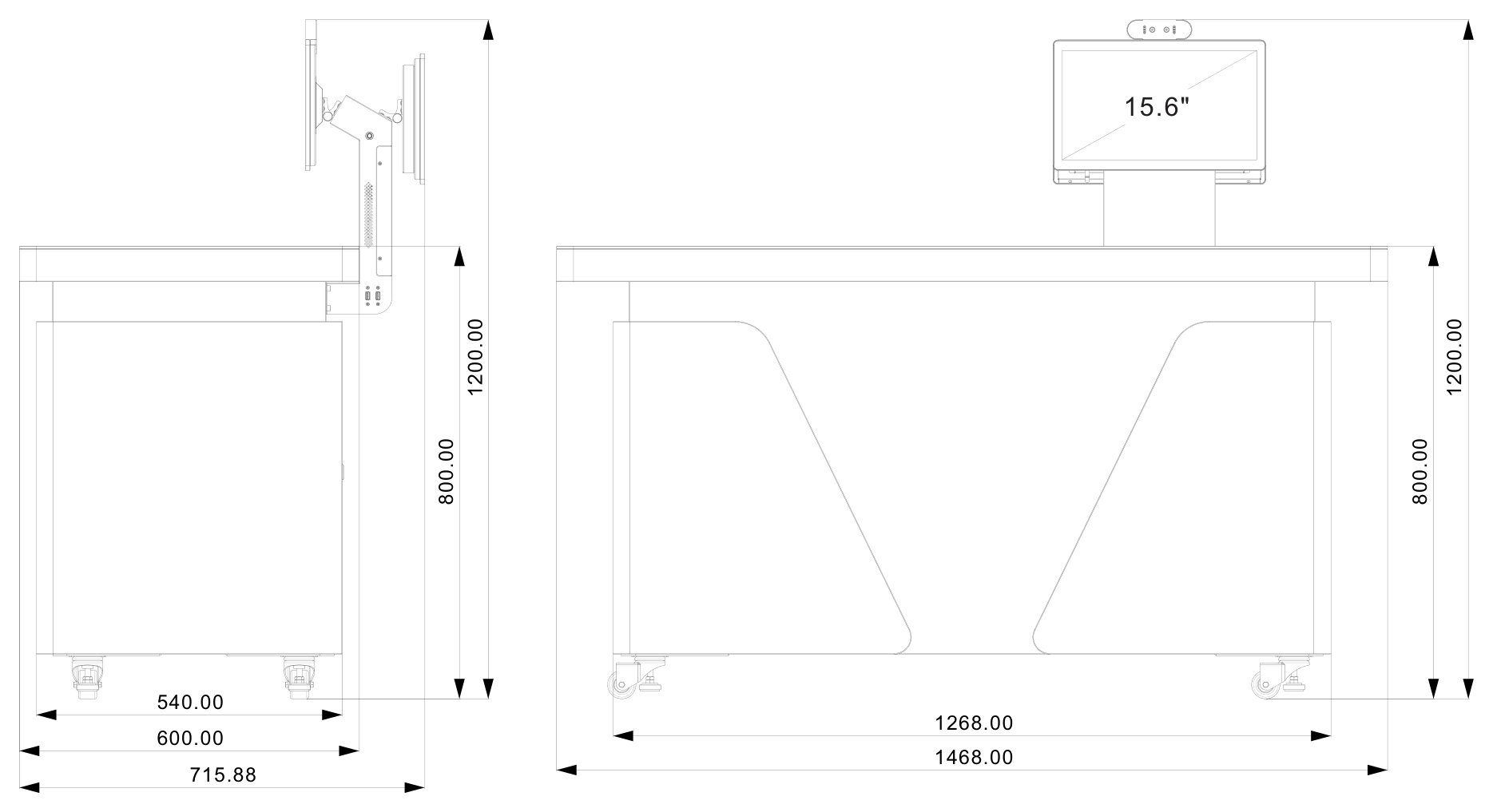

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
